Somta Series 528 - HSSE-V Spiral Flute Tap Bsw 1/8" (Standard)

$34.00

Somta Series 528 - HSSE-V Spiral Flute Tap Bsw 1/8" (Standard)

$34.00

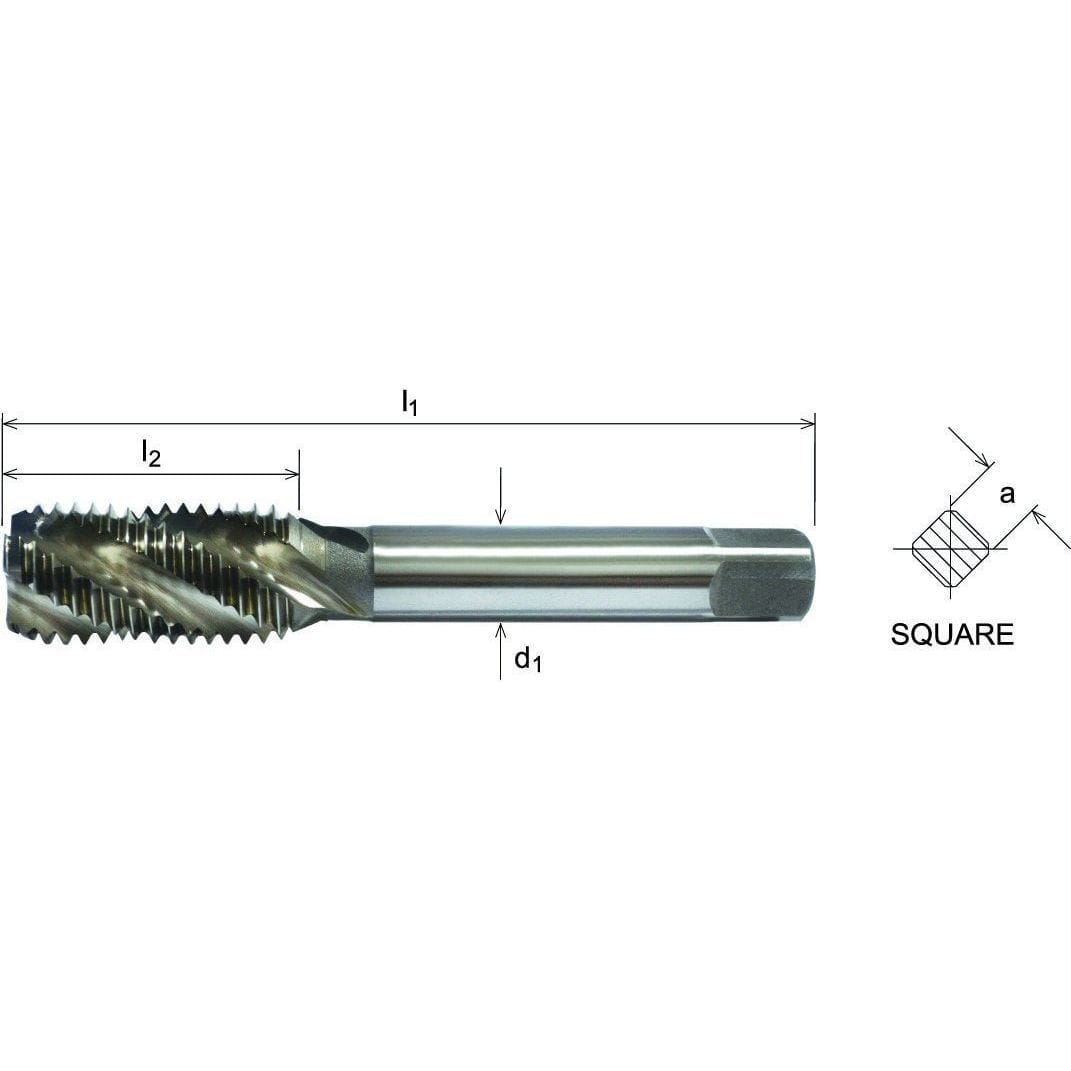

Somta Series 528 1/8" BSW HSSE-V Spiral Flute Tap

This Somta Series 528 short machine tap is designed for cutting 1/8" BSW internal threads in blind holes. It combines HSSE V3 construction with a 35° right-hand spiral flute and right-hand cutting direction for general-purpose machine tapping.

Key Features & Benefits

  • Designed for machine tapping blind holes where the thread does not pass through the workpiece.
  • 1/8" BSW thread size for matching British Standard Whitworth applications.
  • 35° right-hand spiral flute geometry for blind-hole tapping.
  • HSSE V3 construction for general-purpose tapping applications.
  • ISO 529 standard and Class 2 thread specification help identify the correct tap for your requirements.

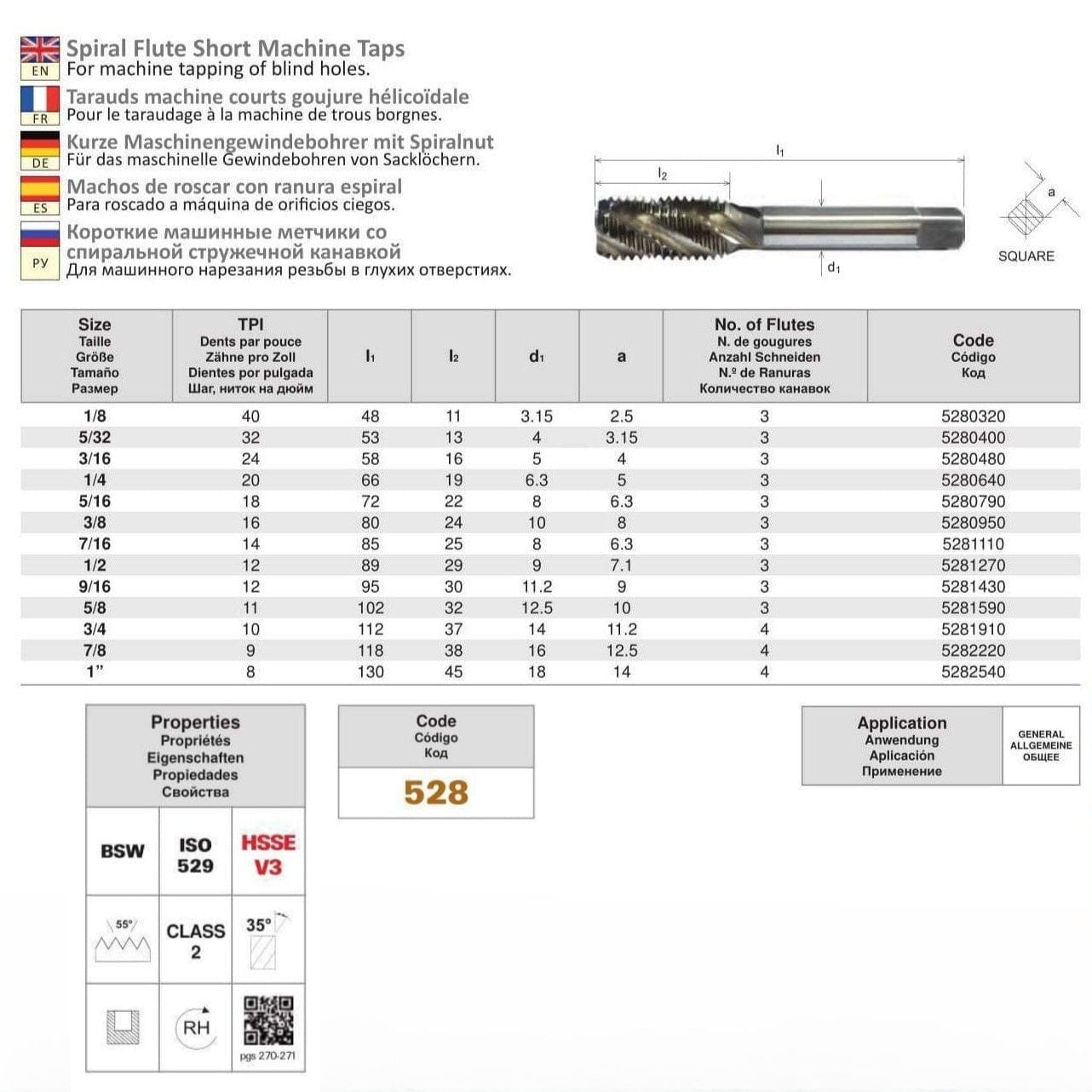

Technical Specifications

  • Brand: Somta
  • Series: 528
  • SKU: 5280320
  • Type: short machine tap
  • Thread size: 1/8" BSW
  • Thread form: British Standard Whitworth
  • Thread flank angle: 55°
  • Thread class: Class 2
  • Material designation: HSSE V3
  • Standard: ISO 529
  • Flute geometry: 35° right-hand helix
  • Cutting direction: right-hand
  • Hole type: blind hole
  • Application: general-purpose machine tapping

Available from Twin Eagle Imports. Confirm the required thread, tapping drill size and suitability for your workpiece material before use.
