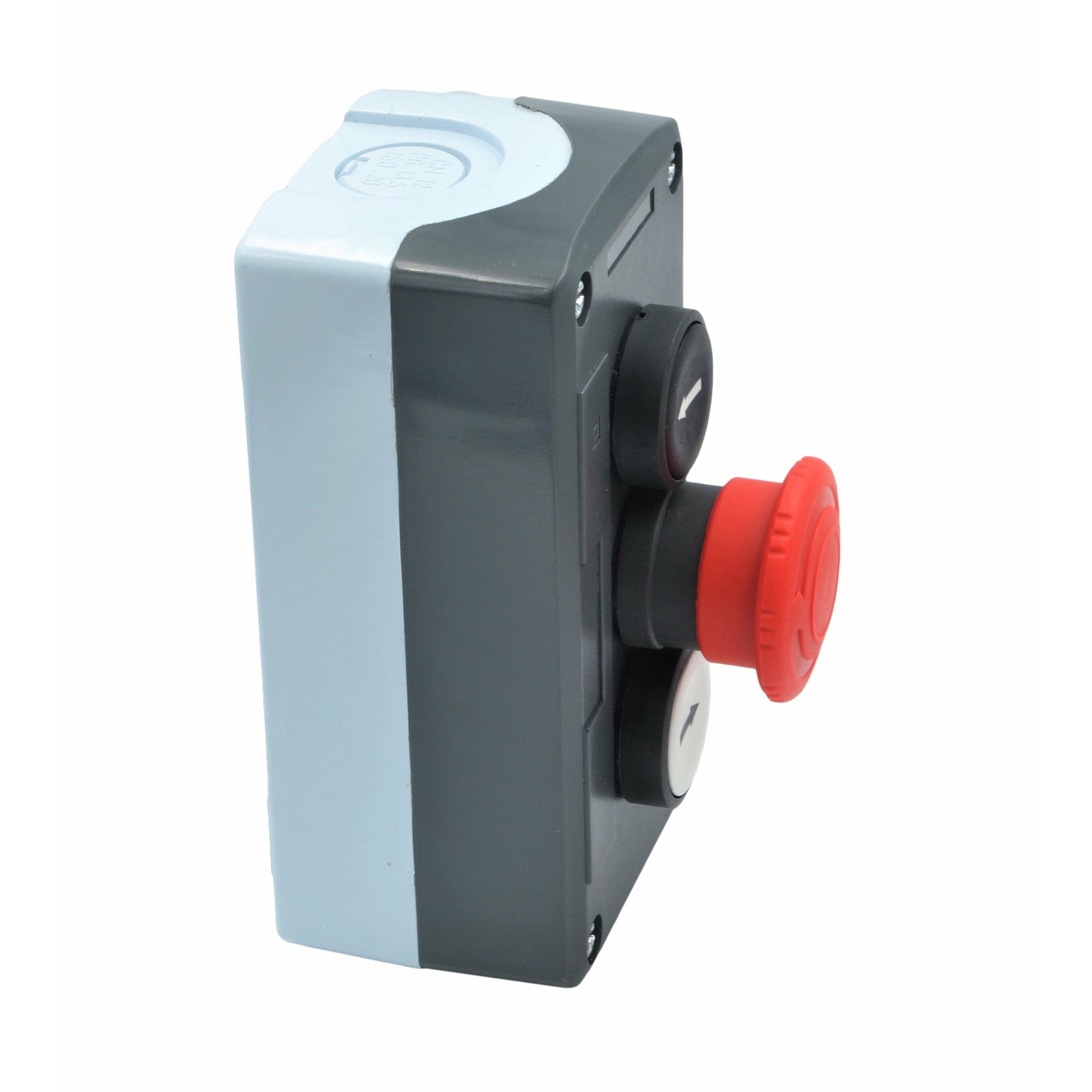

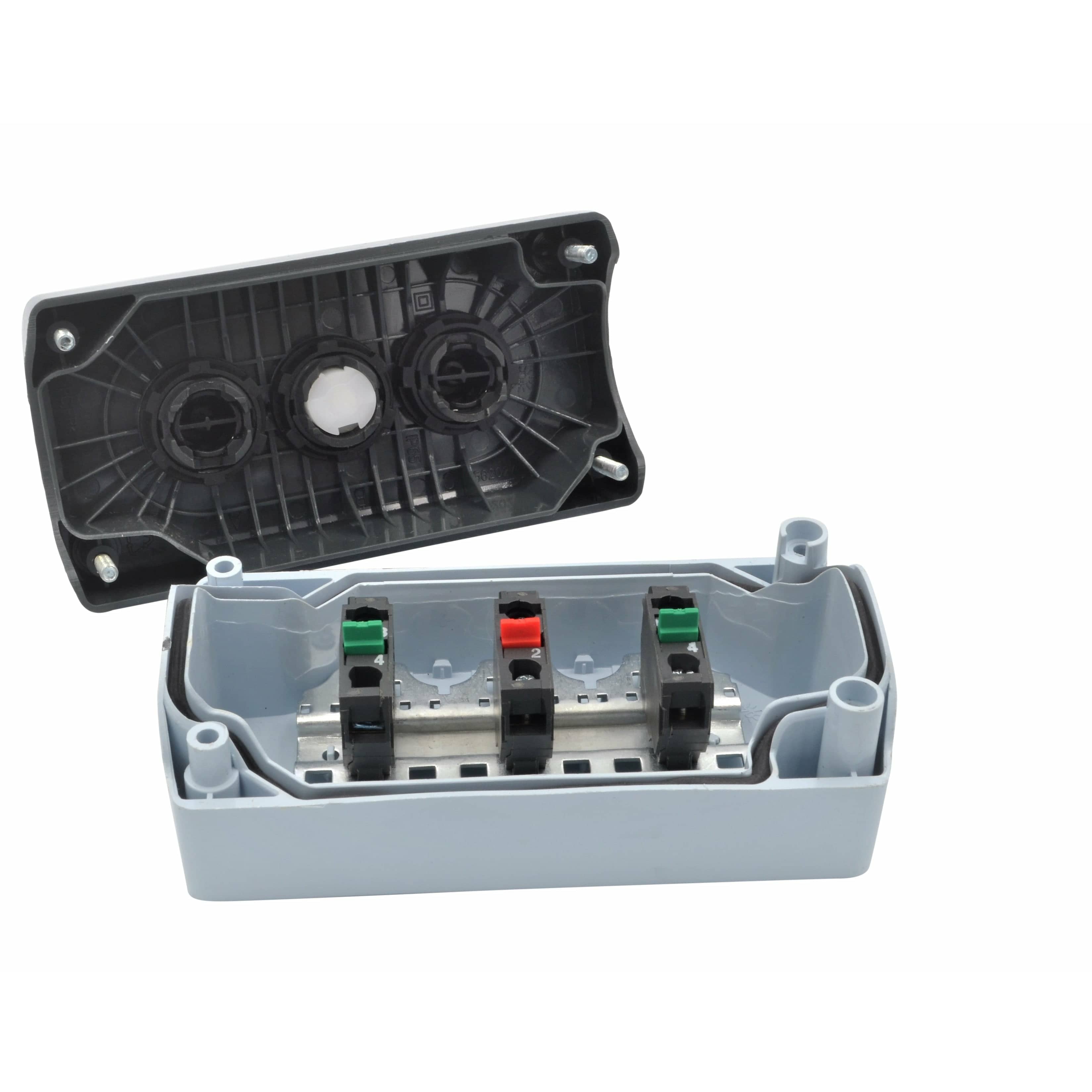

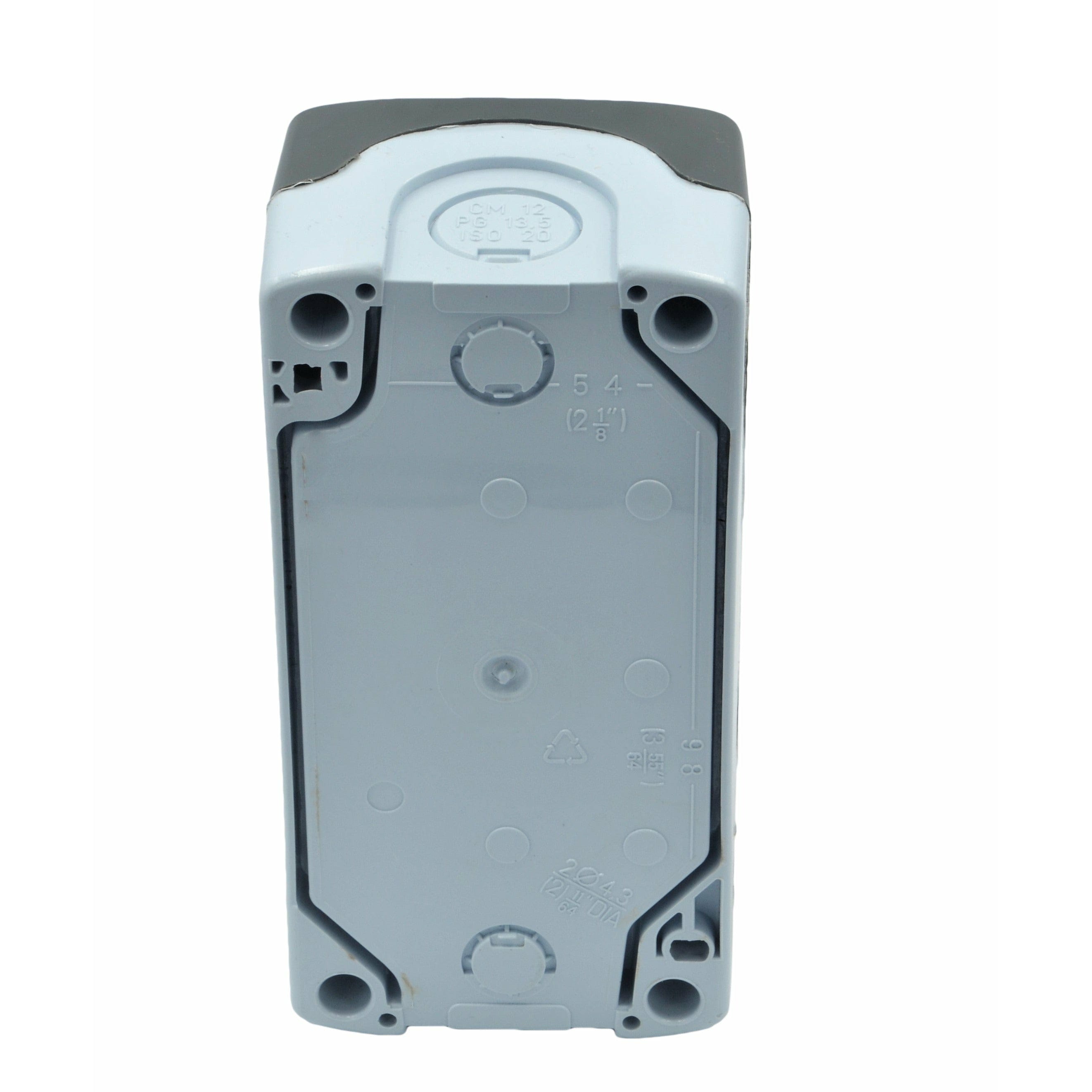

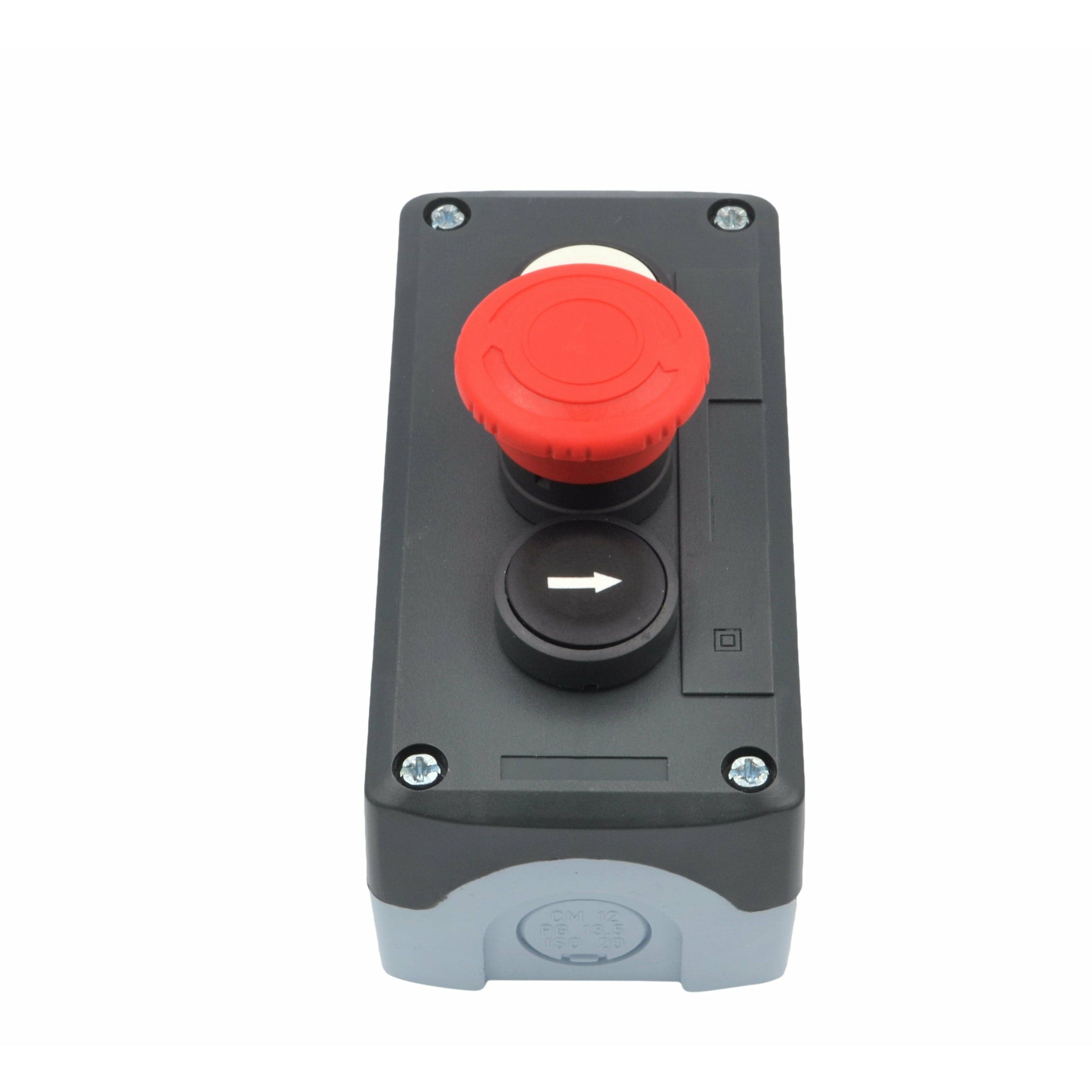

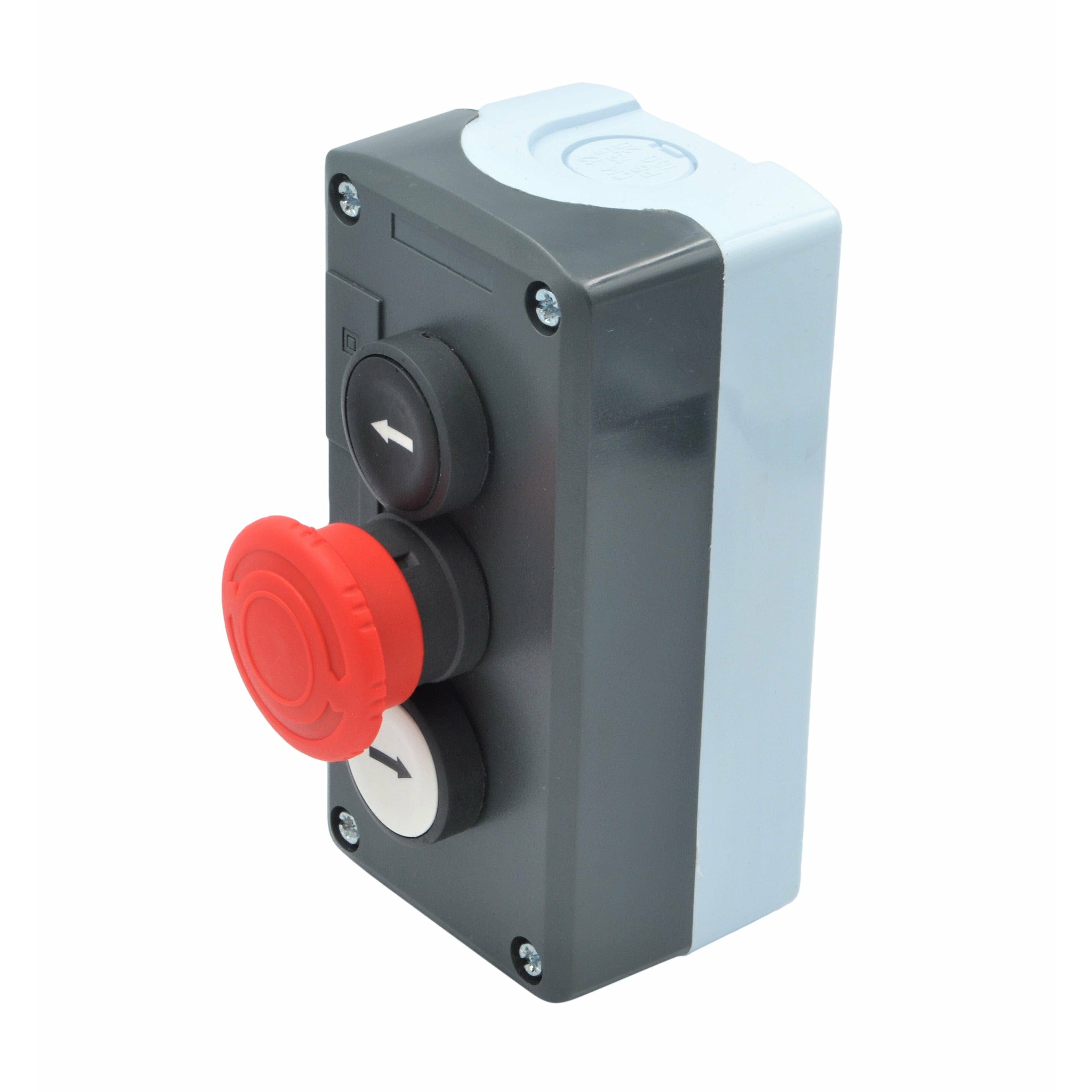

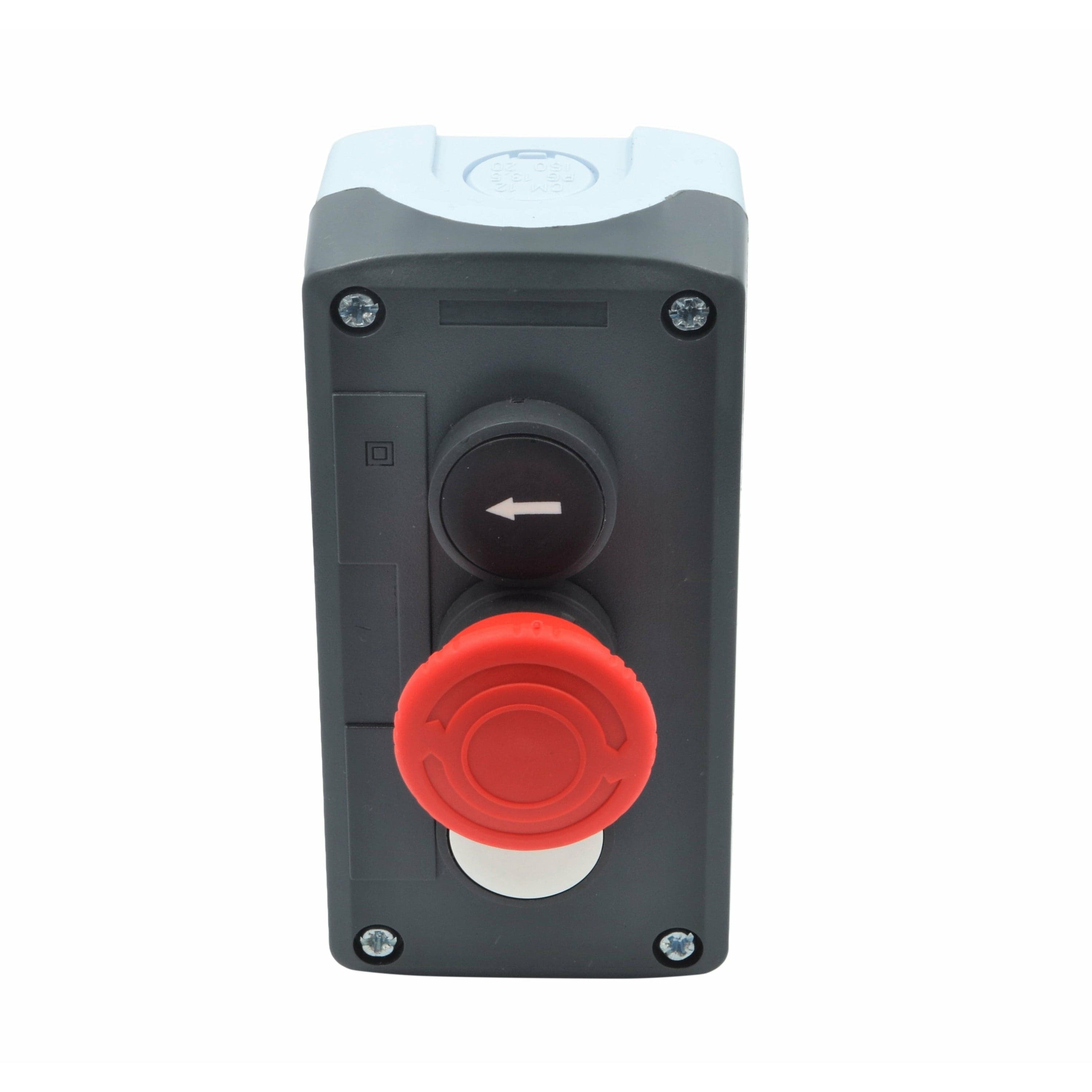

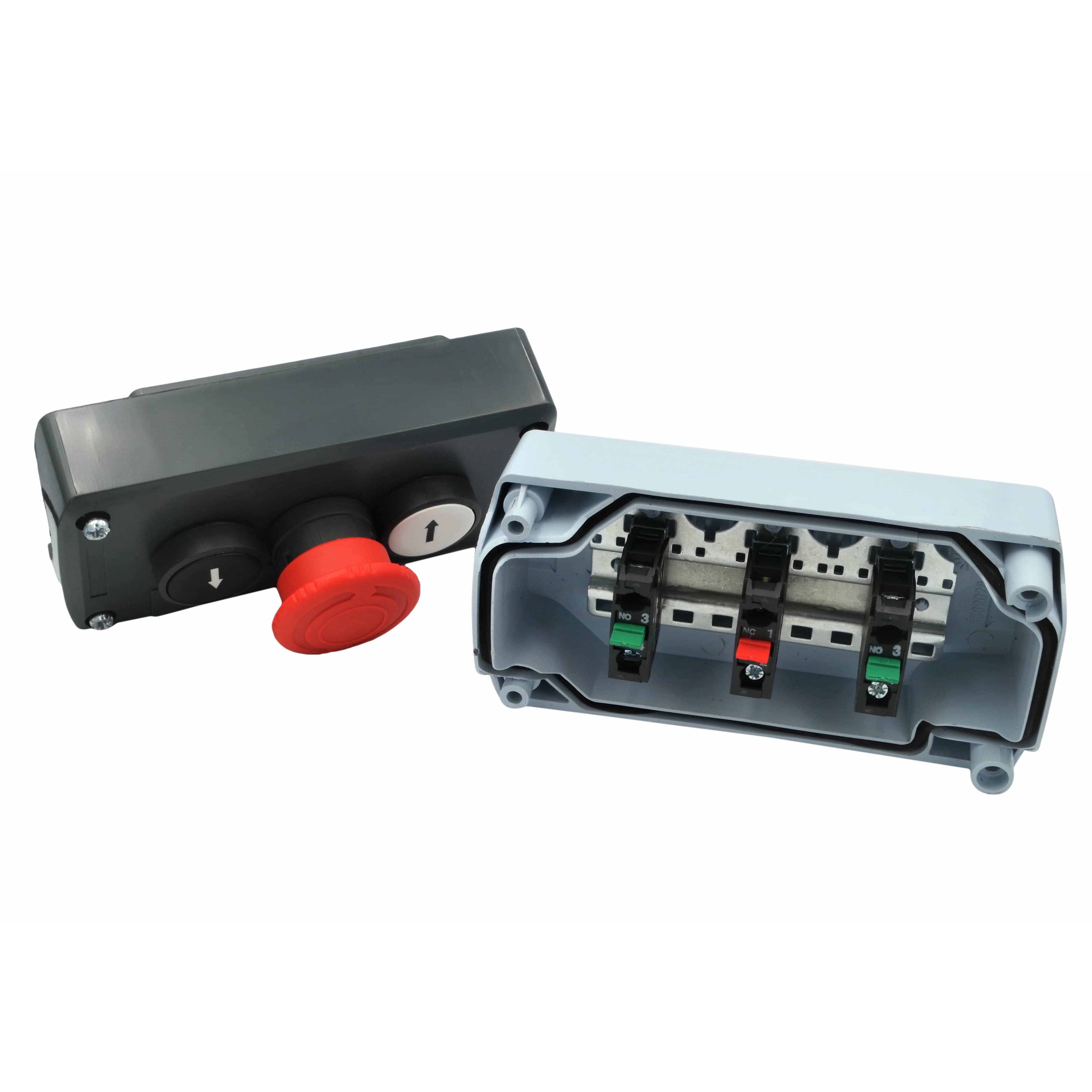

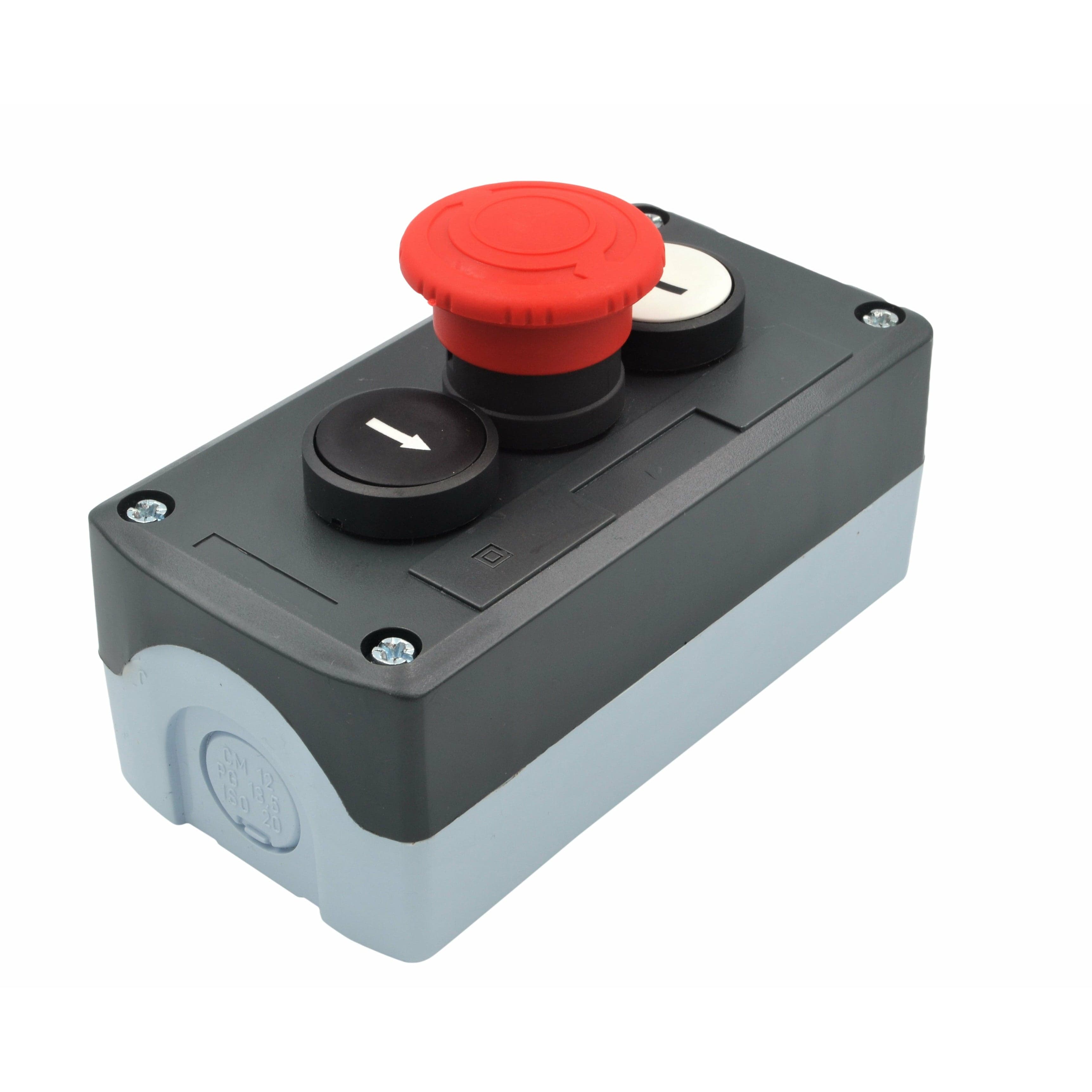

XALD328 Double Pole Control Station NO/NC with plunger stop
Specifications
- Button color - Black/White with direction arrow
- Mushroom head red.
- Casing colour - Grey
- IP Rating - IP69K
-
Momentary spring return
- Plunger Operation - Latching turn release
- Number of poles - 3
- Width - 66 mm
- Length - 136 mm
- Height - 90 mm
-

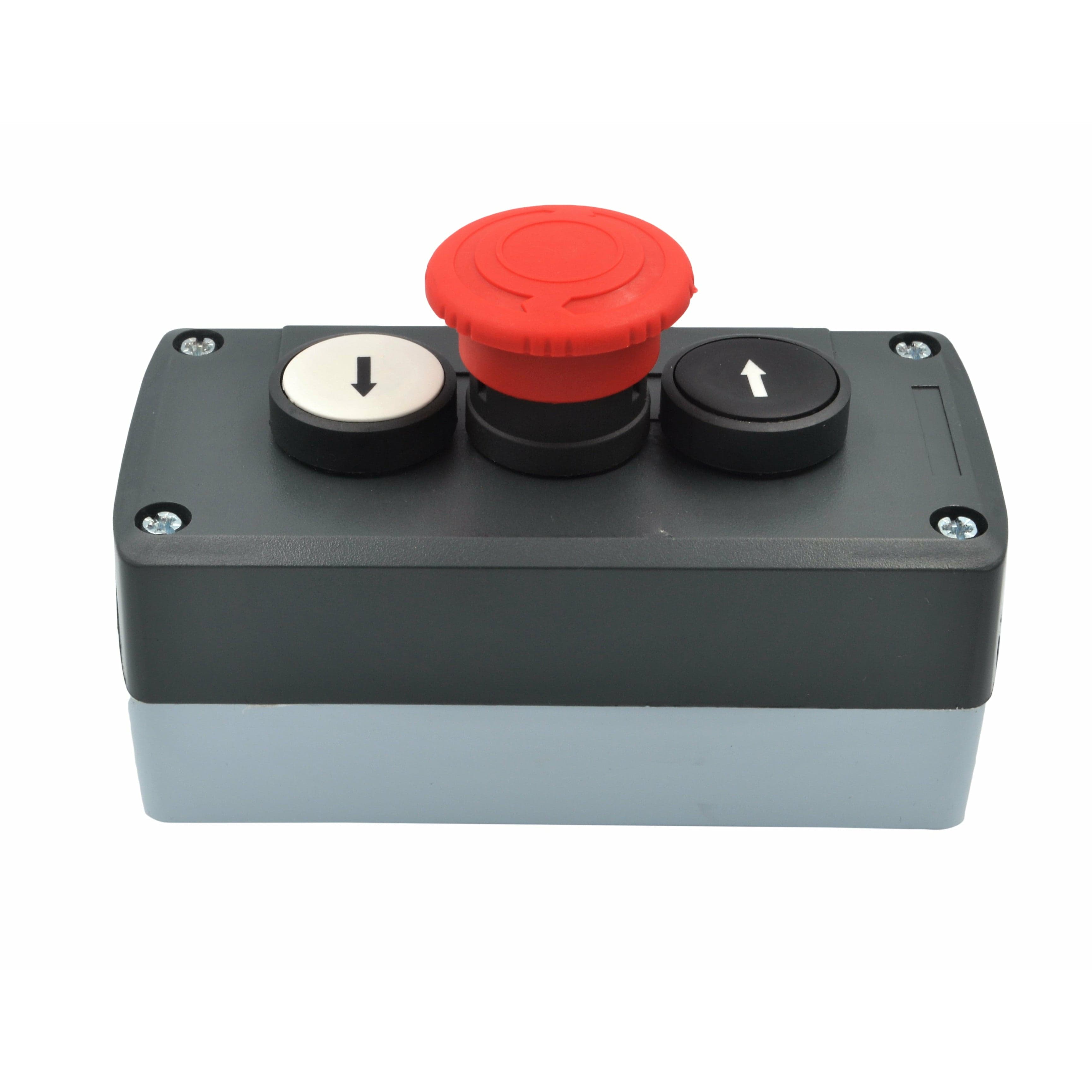

1 flush push-button white 1 NO black up arrow marking
1 flush push-button black 1 NO white down arrow marking
1 mushroom head Ø 30 mm push-button red 1 NC - Maximum AC Voltage -600 V
- Maximum DC Voltage -600 V
- Minimum operating temperature - -25°C
- Maximum operating temperature - +70°C
- Terminal type - Screw
- Comparison Part No XALD328
