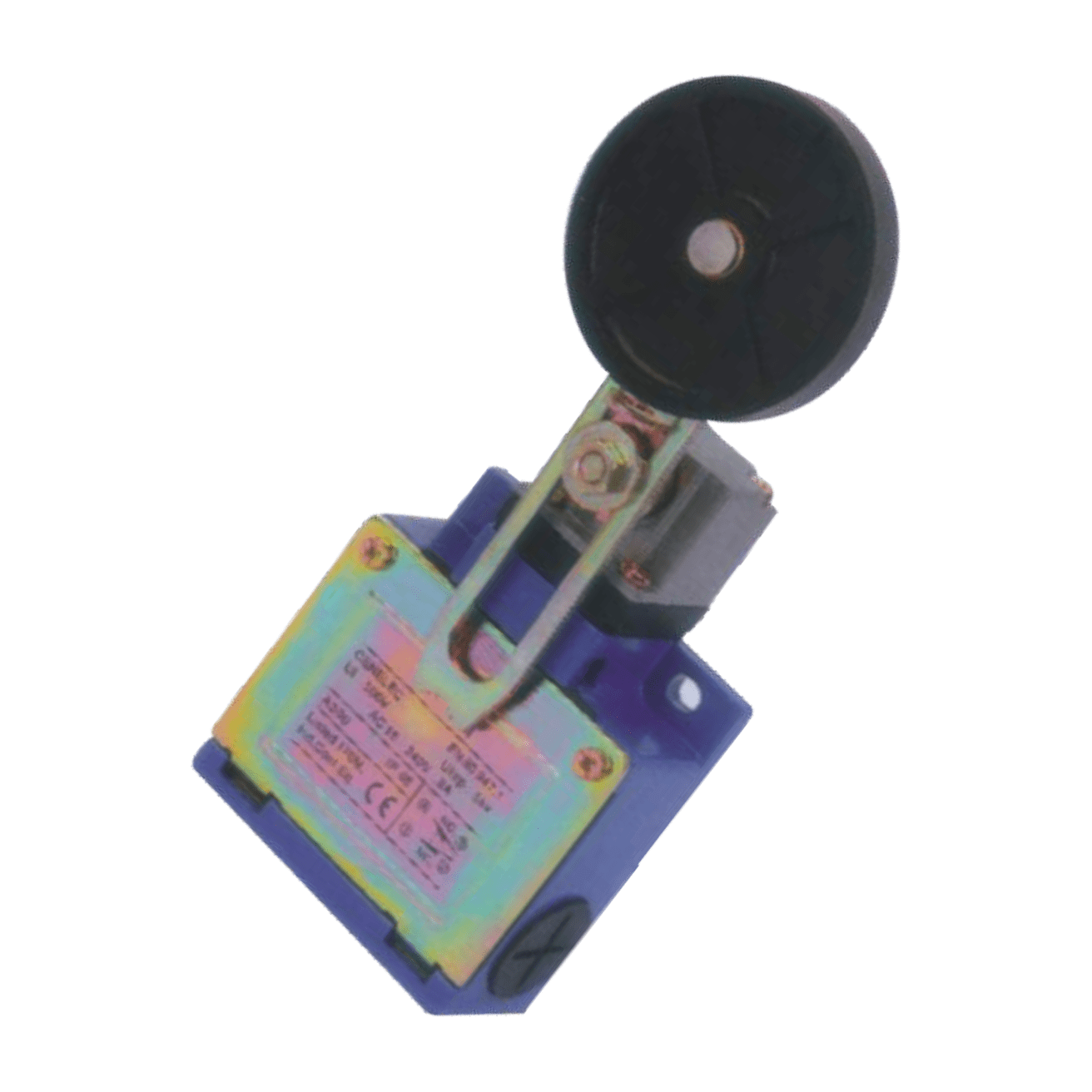

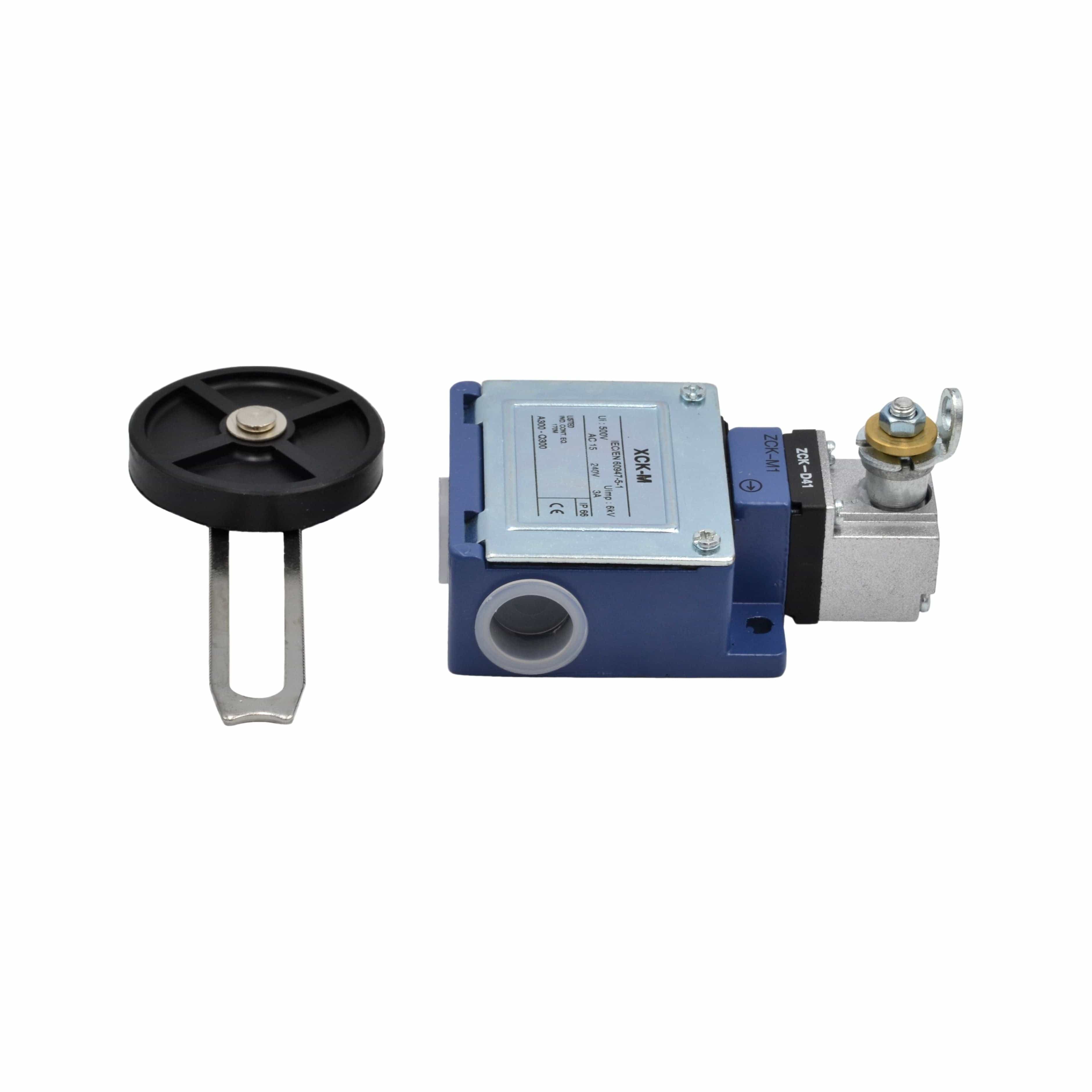

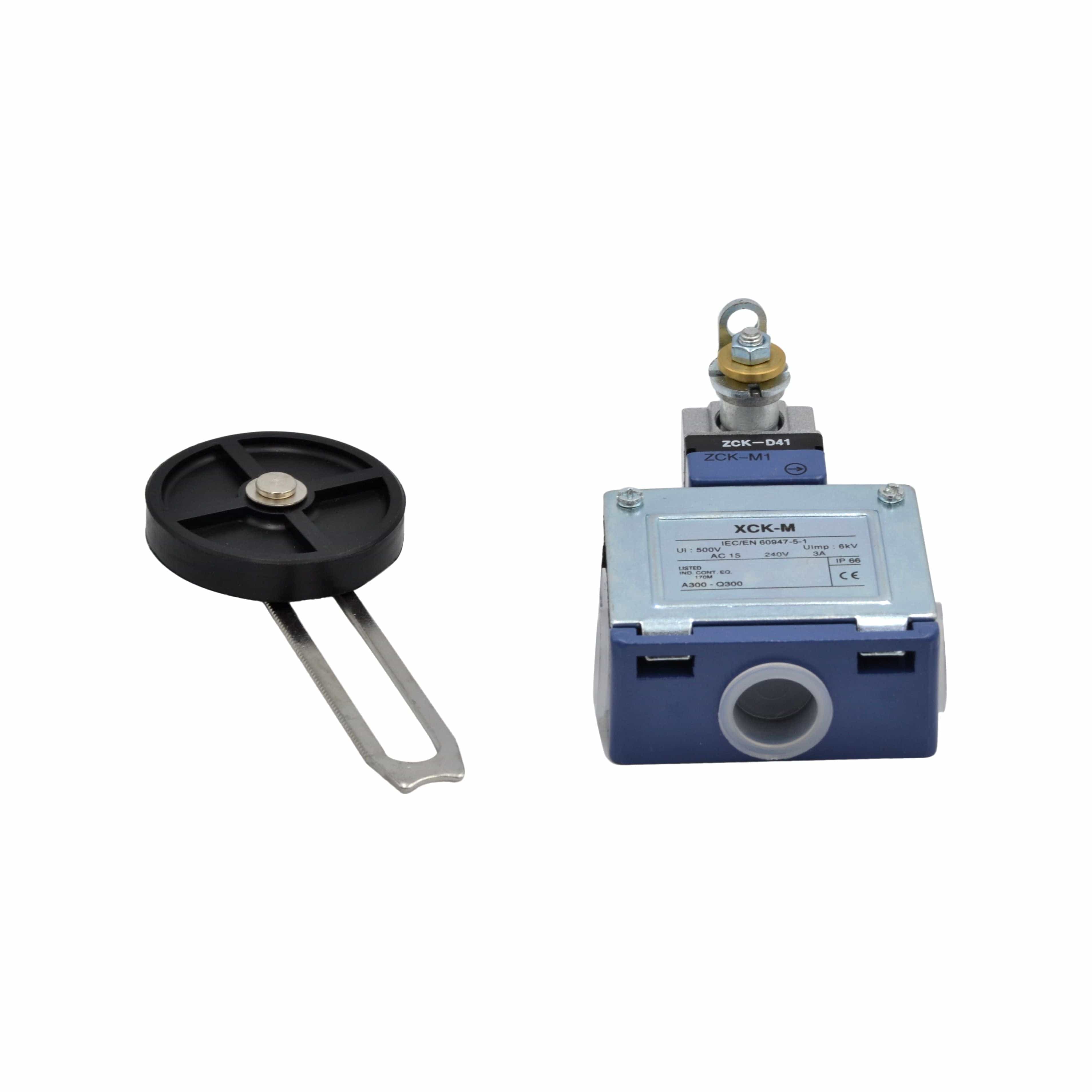

XCK-M149 Adjustable Roller Lever Arm Limit Switch

Features Durable metallic exterior casing, with a swing arm capable of a maximum ±95° rotation. Extended operational lifespan, with a capacity for 20,000,000 mechanical cycles. Components include a stainless steel...
$22.00
$22.00
(-0%)
Vendor: Tianyi
SKU: XCK-M149
Availability: In Stock
Subtotal: $22.00

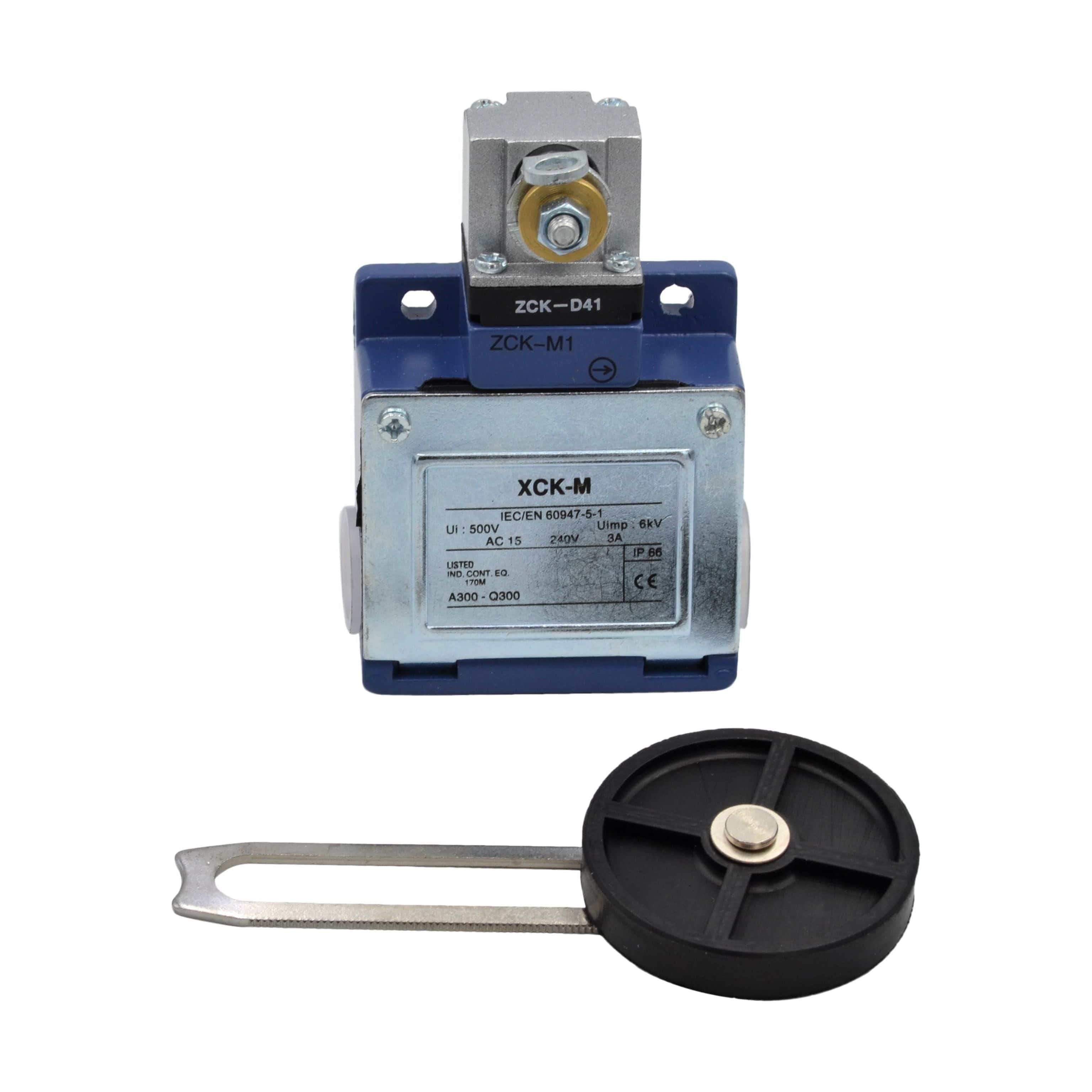

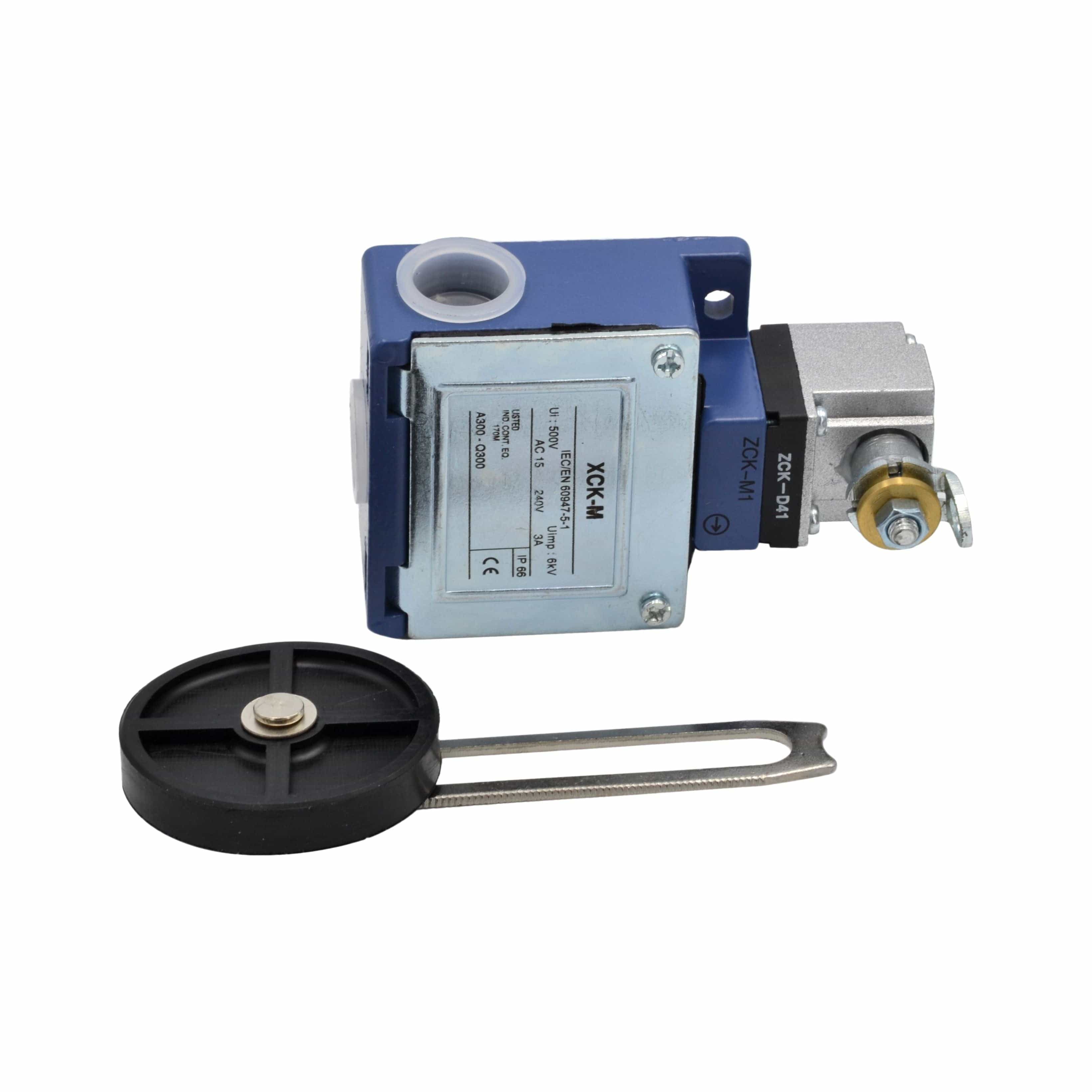

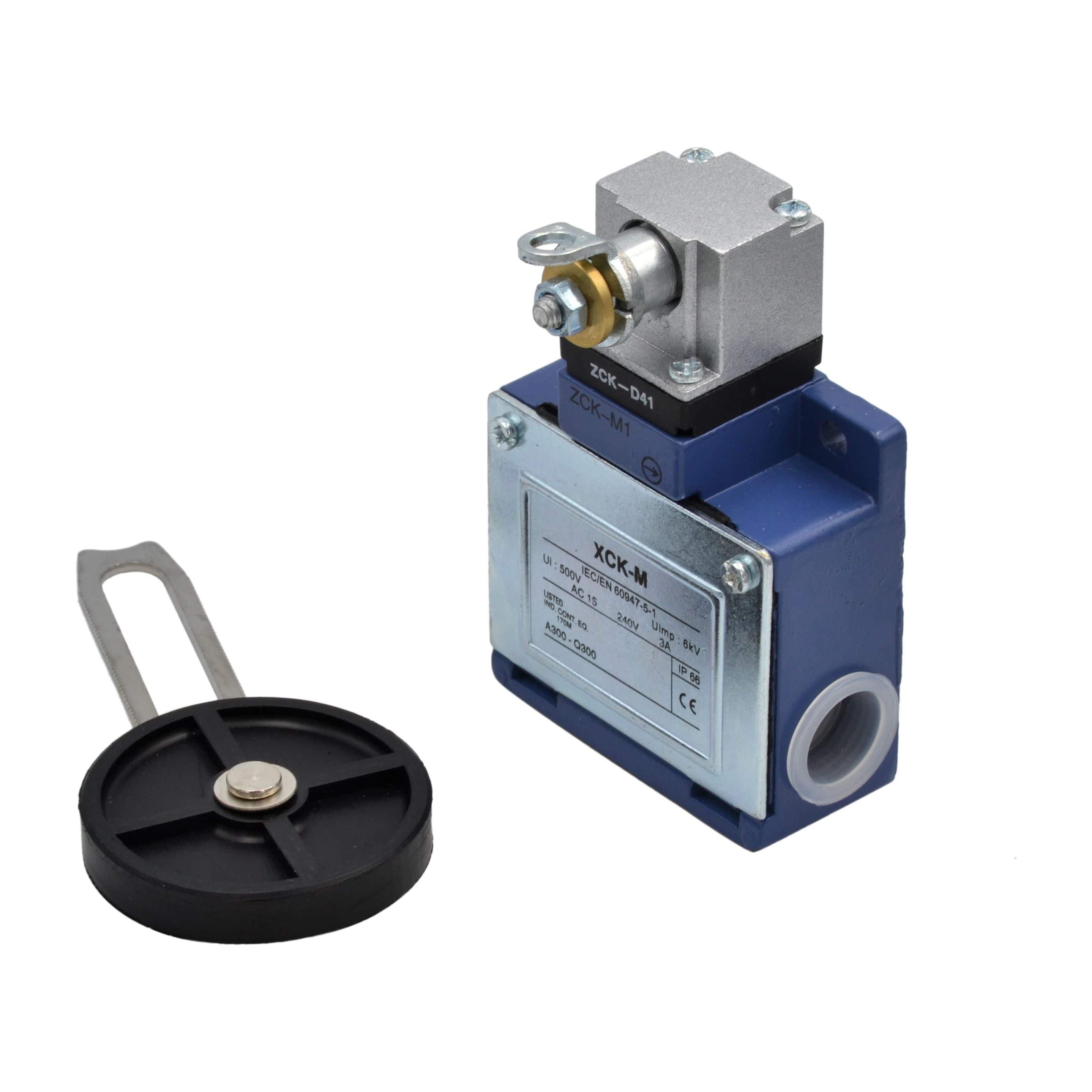

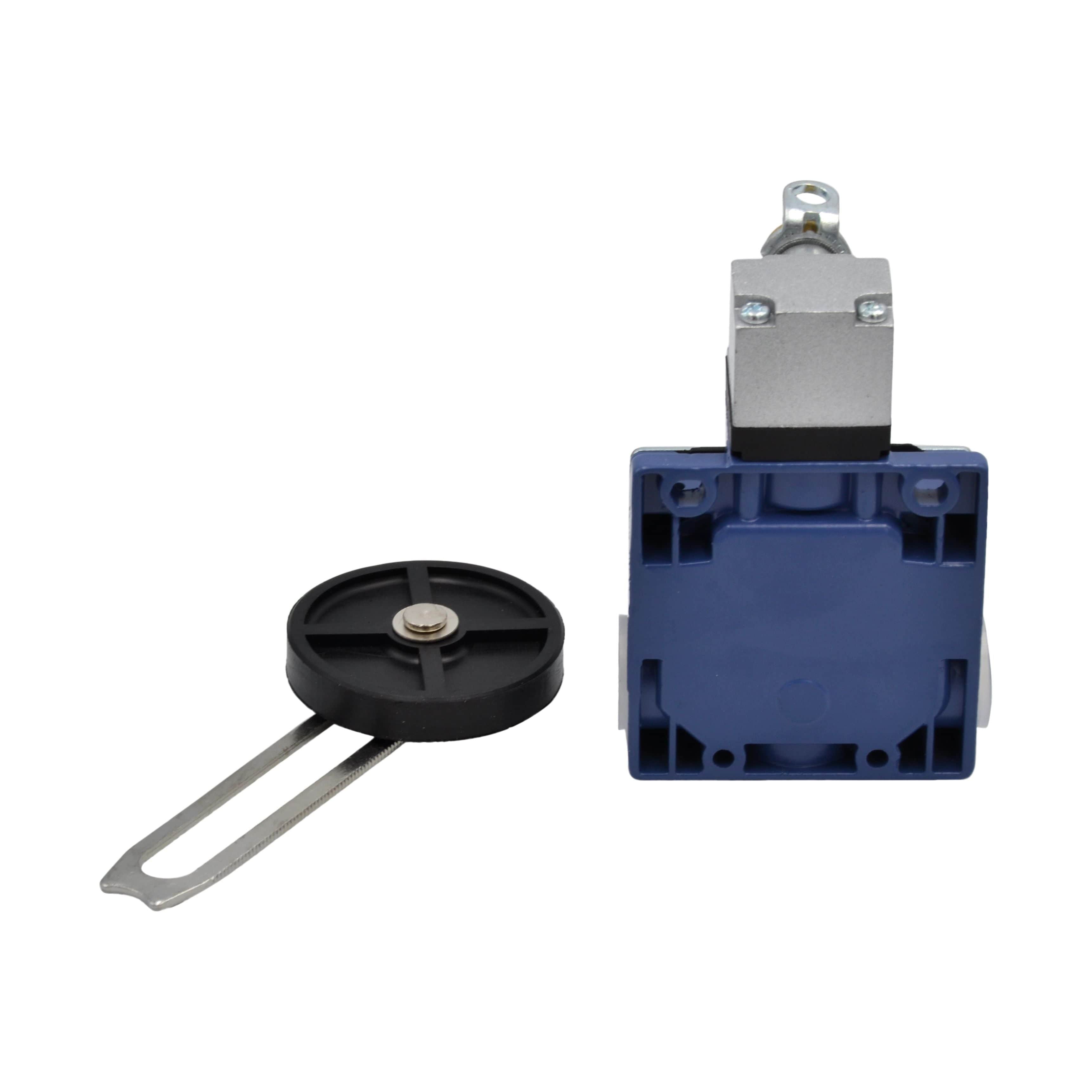

XCK-M149 Adjustable Roller Lever Arm Limit Switch

XCK-M149 Adjustable Roller Lever Arm Limit Switch

$22.00

XCK-M149 Adjustable Roller Lever Arm Limit Switch

$22.00

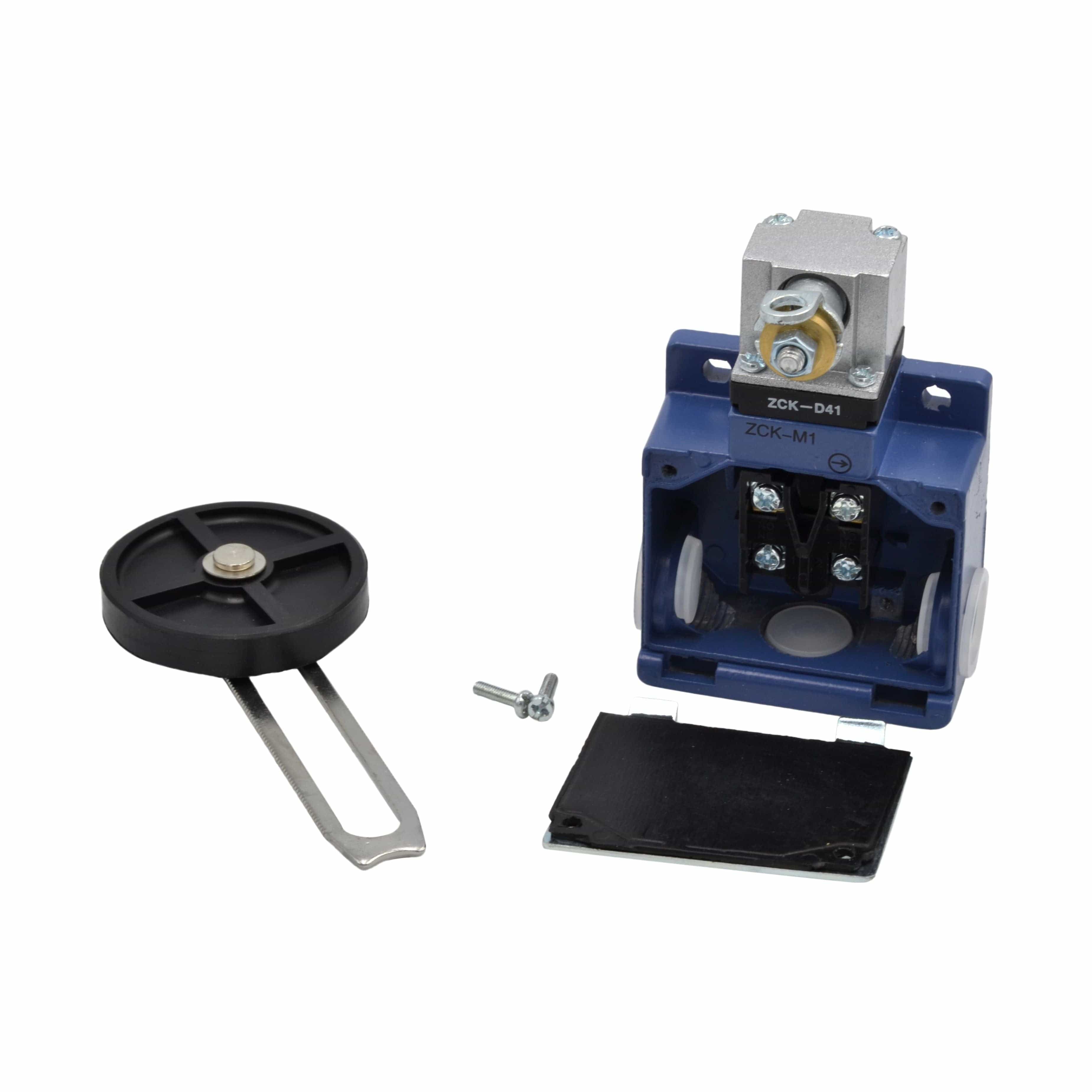

Features

  • Durable metallic exterior casing, with a swing arm capable of a maximum ±95° rotation.
  • Extended operational lifespan, with a capacity for 20,000,000 mechanical cycles.
  • Components include a stainless steel idler wheel, punch, and spring for enhanced durability.
  • Equipped with a selectively chosen PG11 cable gland for specific cable management needs.

Characteristics

Double break mechanism INO+INC Force Break snap action
Rated voltage/current 10(4),125,250VAC/6(2)A,380VAC For inductance Load,Cos φ=0.4
Contact resistance 25㏁ max.(initial value)
Insulation resistance 100㏁ min.(at 500VDC)
Dielectric strength 1000VAC , 50/60Hz For 1 minute between terminals of the same polarity
1500VAC , 50/60Hz For 1 minute between current-carrying and non current-carrying metal parts
1500VAC , 50/60Hz For 1 minute between each terminal and ground
Electrical life 500,000 at 10A250VAC Resistive
Mechanical life 10,000,000 operations min. (under rated conditions)
Operating Speed 5mm/s to 0.5m/s
Degree of protection IP66
Ambient temperature rise Max 30°C over ambient temperature at rated voltage/current
Conformed standards Cenelec EN50041,EN50047,IEC337-1,VDE0660
Operating temperature -5°C-+65°C(with no icing)
Storage temperature -5°C-+65°C(with no icing)
Ambient operating humidity 95%RH Max
Shock Resistance Mechanical durable :1000m/s2min.
Malfunction :300m/s2min.
Vibration frequency Malfunction:10 t0 55hZ,1.5mm double amplitude
Terminal screw torsional force 6-8 kgf - cm
Other screw torsional force Cover 12-14 kgf - cm/Head 8-9 kgf-cm/Mounting 50-60 kgf/cm
Bare wire diameter φ 2Max
Cable diameter φ 12Max(IP 65 is use cable φ8-9 )

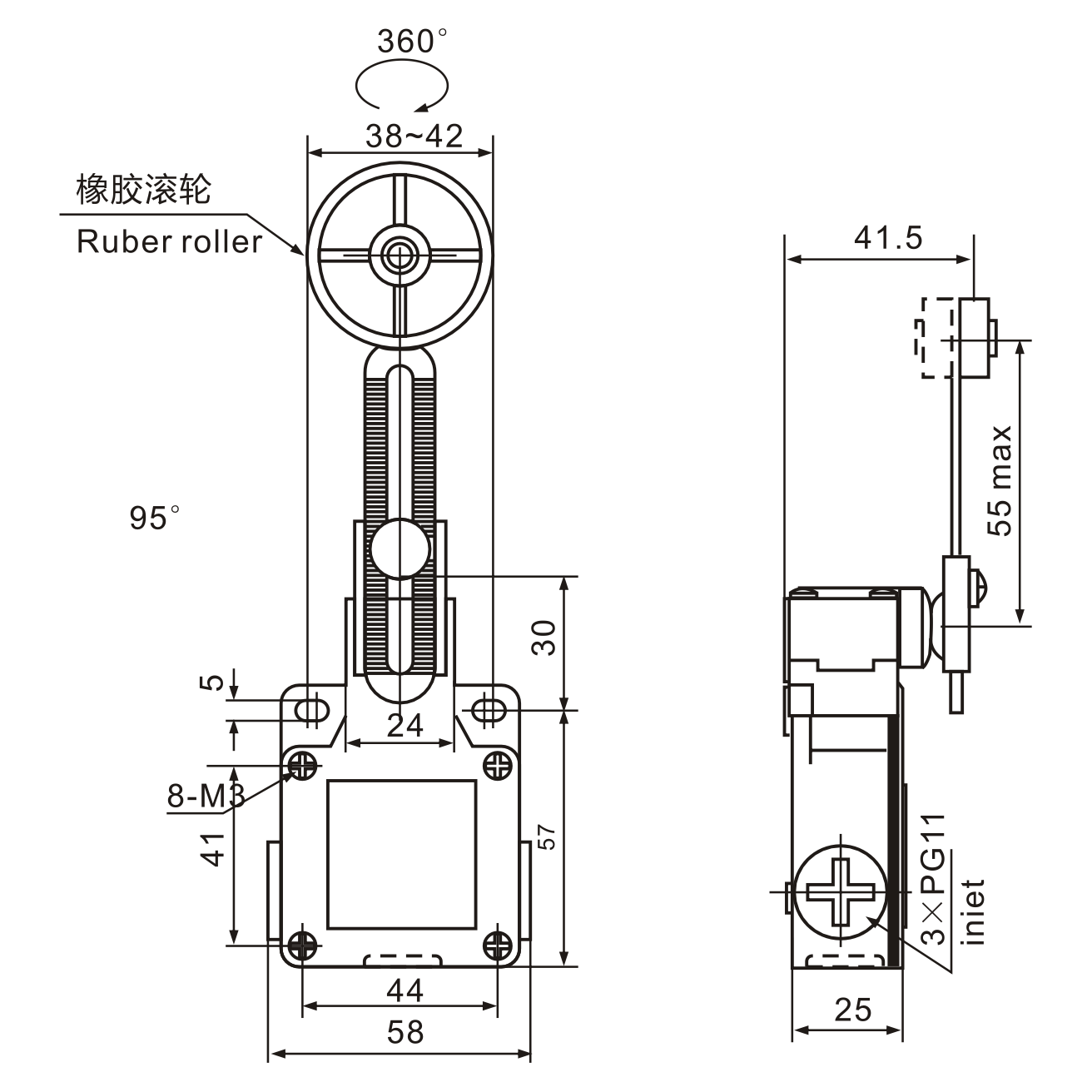

Specifications

Model XCK-M 110 102 121 115 141 106 149 108
Operating force OF(max) 800g 800g 800g 750g 400g-cm 150g 800g 150g
Release Force RF(min) 400g 400g 400g 100g-cm 100g-cm 50g 400g 50g
Pre travel PT(max) 1.8mm 1.8mm 1.8mm 20° 20° 30mm 1.8mm 30mm
Tripping Position TP+-10% 2.0mm 2.0mm 2.0mm 22.5° 22.5° 22.5° 2.0mm 22.5°
Movement differential MD(max) 1.2mm 1.2mm 1.2mm 10° 10° 14° 1.2mm 14°
Over travel OT(min) 4.0mm 4.0mm 4.0mm 75° 75° 20mm 4.0mm 20mm
Total travel TT 5.8mm 5.8mm 5.8mm 90° 90° 50mm 5.8mm 50mm
