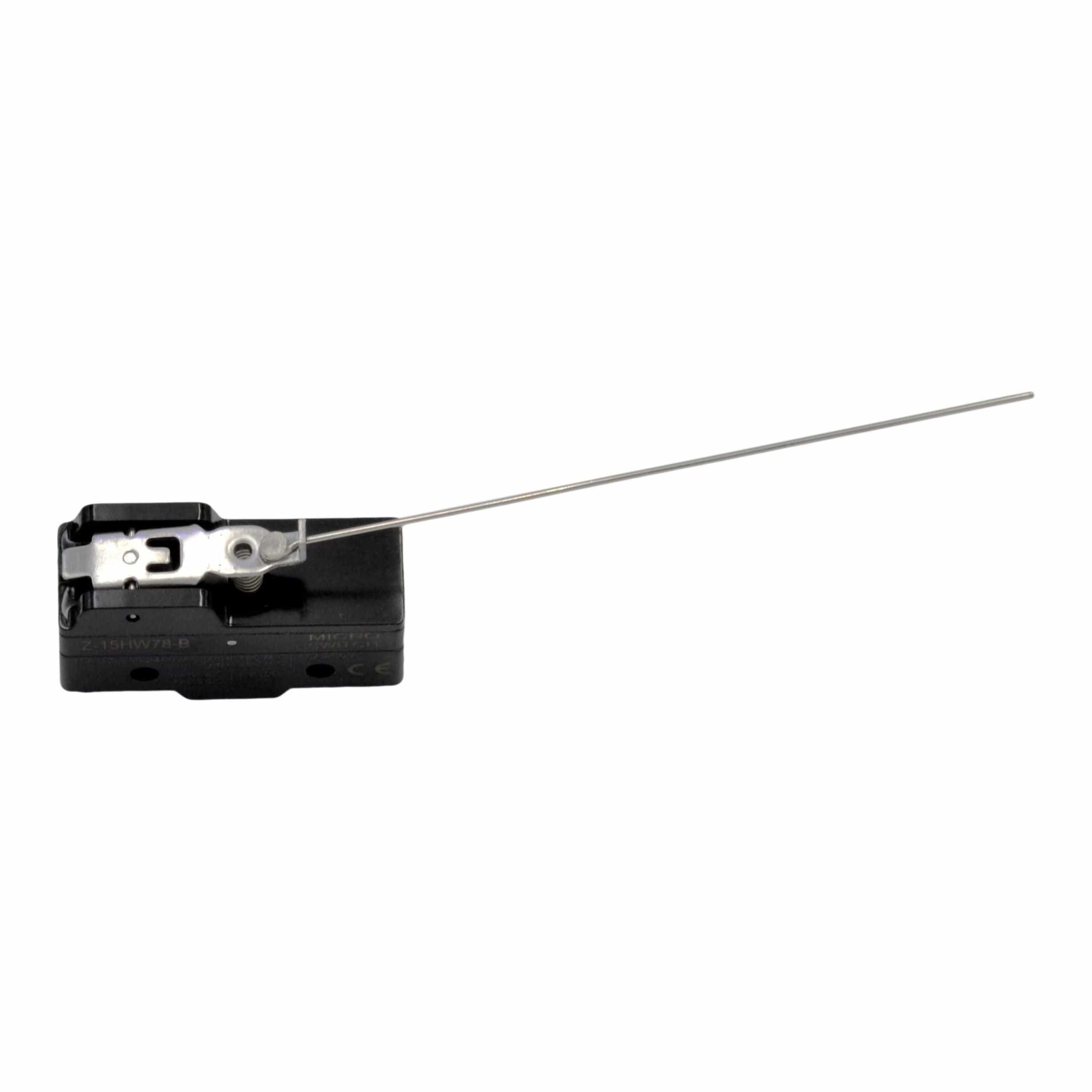

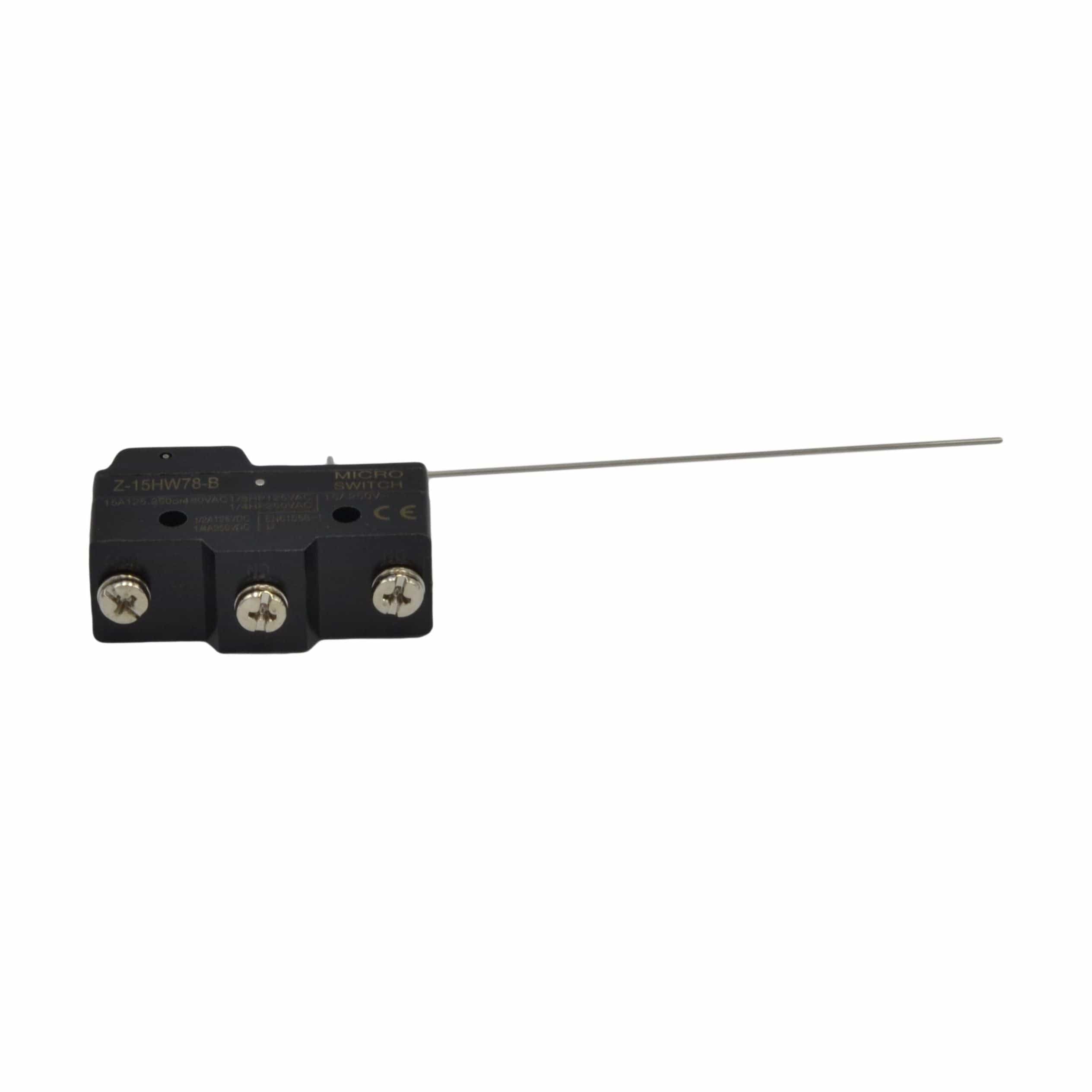

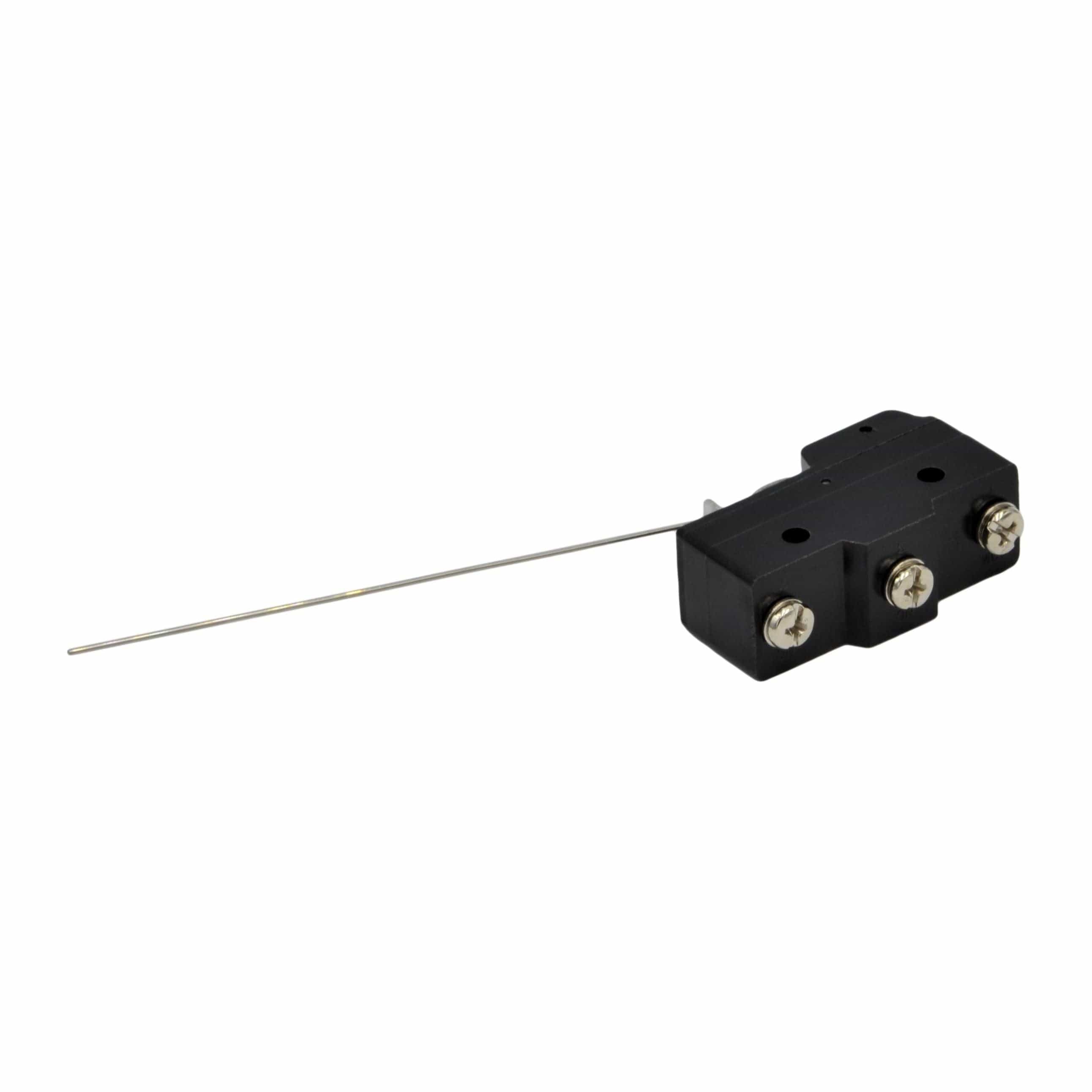

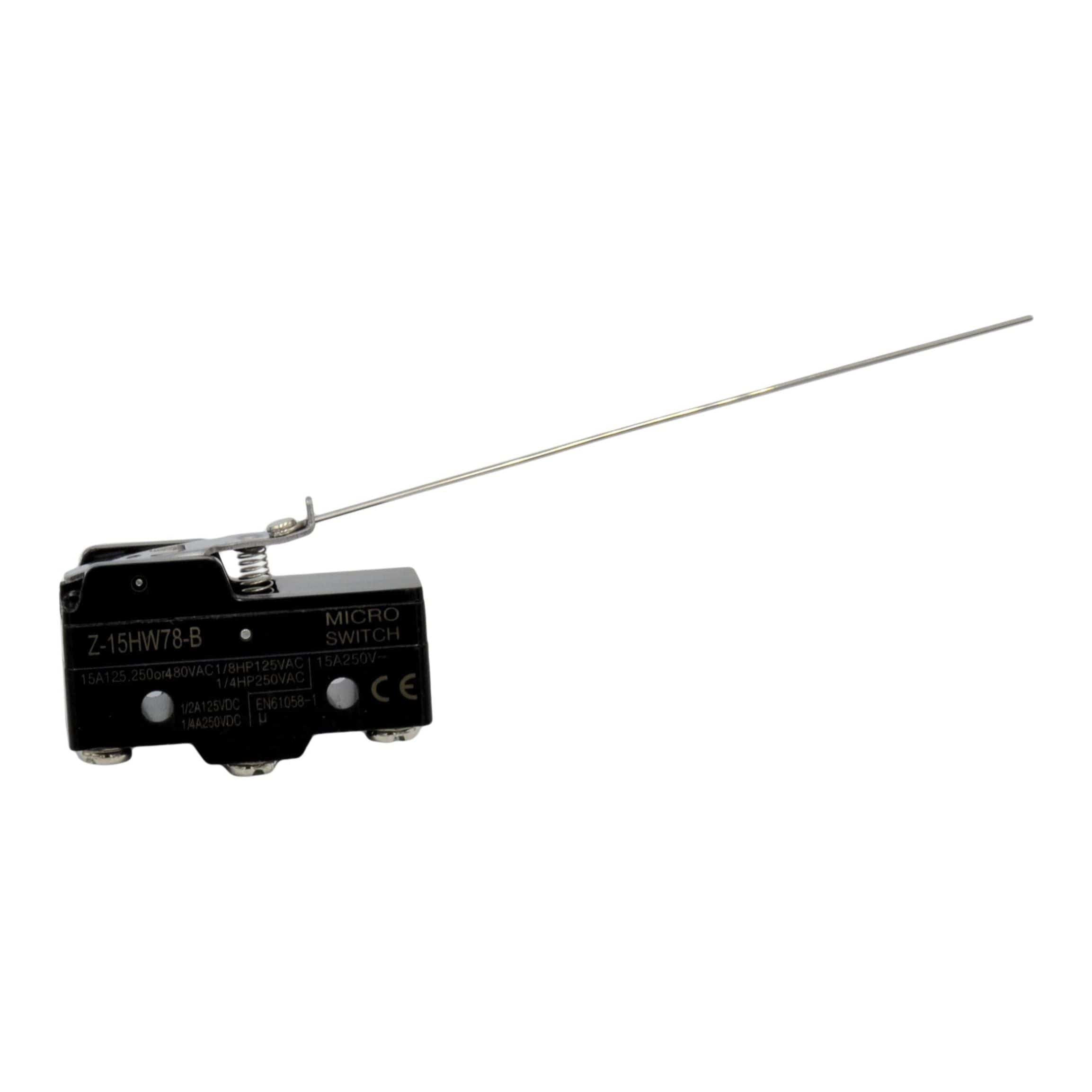

Z-15HW78-B Hinge Lever Toggle with Screw Terminals Limit Switch

Features High Switching Capacity: Supports up to 15A for both ON and OFF functions Exceptional Precision Broad Range of Operational Speeds Multiple Terminal Options: Choose from solder terminals, tab terminals...
$23.00 USD
$23.00 USD
(-0%)
Vendor: Tianyi
SKU: Z-15G78-B
Availability: In Stock
Subtotal: $23.00
Z-15HW78-B Hinge Lever Toggle with Screw Terminals Limit Switch

Z-15HW78-B Hinge Lever Toggle with Screw Terminals Limit Switch

$23.00

Z-15HW78-B Hinge Lever Toggle with Screw Terminals Limit Switch

$23.00

Features

  • High Switching Capacity: Supports up to 15A for both ON and OFF functions
  • Exceptional Precision
  • Broad Range of Operational Speeds
  • Multiple Terminal Options: Choose from solder terminals, tab terminals (labeled as 'C'), or blank selections for screw terminals"

Contact Form

  • CloseClose
  • Carry the son togetherOpen

Characteristics

  • Operation speed: 0.01mm~1m/sec
  • Operating Frequency: Mechanical: 240 operations/min Electrical: 20 Operations/min
  • Contact resistance: 15MΩ max.(initial value)
  • Insulation resistance: 100MΩ min.(at500VDC)
  • Dielectric strength: 1000VAC, 50/60Hz for 1 minute between terminals of the same polarity
  • 1500VAC, 50M660Hz For 1 minute between current-carrying and non current-carrying metal parts
  • 1500VAC, 50M660Hz For 1 minute between each terminal and ground
  • 10-50Hz,1.5mm double amplitude
  • Shock:Mechanical Durable: 1000m.Sec(about 100G' S)
  • Malfunction: 300m.Sec(about 30G' S)
  • Ambient temperature: General purpose type: -25~+80°C, Sealed type:-15~80°C
  • Humidity General purpose type: 85%RH max, Sealed type: 95%RH max.
  • Life: Mechanical: 20,000,000 operation/min
  • Electrical: 500,000 operation/min
  • Weight: About 22 to 58g
