In modern CNC machining, precision, reliability, and safety are critical to achieving consistent results. While cutting tools and machine performance often receive the most attention, the components responsible for securing those tools play an equally important role. Weldon shank holders, pull studs, and retention knobs are essential parts of any CNC tooling system, ensuring that cutting tools remain firmly in place during demanding machining operations.

Secure tool retention is non-negotiable in CNC environments. Even the most advanced machine tools can experience reduced performance, poor surface finishes, or catastrophic failures if tooling is not properly secured. Understanding the purpose and benefits of Weldon shank holders, pull studs, and retention knobs can help machinists and manufacturers maintain productivity, improve safety, and protect valuable equipment.

Understanding Weldon Shank Holders

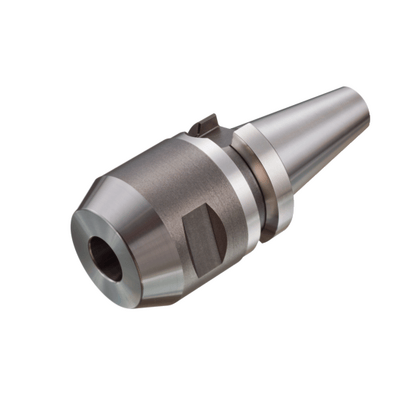

Weldon shank holders are among the most widely used toolholding solutions in CNC machining. They are specifically designed to hold end mills that feature a Weldon flat on the shank. The holder uses a set screw that engages the flat section of the cutting tool, providing a positive mechanical drive and secure grip.

This design offers several advantages over friction-based clamping systems. Because the set screw physically locks the tool in place, there is minimal risk of the cutting tool slipping or rotating during operation. This makes Weldon shank holders particularly effective for heavy-duty machining applications where high cutting forces are present.

Benefits of Weldon Shank Holders

Positive Tool Drive

One of the primary advantages of a Weldon shank holder is its ability to provide positive drive. Unlike collet systems that rely on clamping pressure alone, Weldon holders create a mechanical connection between the tool and holder. This ensures efficient torque transmission and reduces the likelihood of tool movement.

Ideal for Heavy Cutting Operations

Roughing and heavy material removal place significant loads on cutting tools. Weldon shank holders are engineered to withstand these forces, making them an excellent choice for aggressive machining applications. Manufacturers commonly use them when machining steel, stainless steel, cast iron, and other difficult materials.

Prevention of Tool Pull-Out

Tool pull-out can result in poor dimensional accuracy, damaged workpieces, broken cutters, and machine downtime. Because the Weldon flat is mechanically secured by the set screw, the risk of the tool being pulled from the holder under load is significantly reduced.

Reliable Performance

Many machining operations require consistent and repeatable results. Weldon holders offer dependable tool retention, helping maintain machining accuracy and process stability across production runs.

Applications of Weldon Shank Holders

Weldon shank holders are commonly used across various industries, including:

• Aerospace manufacturing

• Automotive production

• General engineering

• Tool and die making

• Mining equipment manufacturing

• Heavy industrial machining

These holders are particularly valuable in applications where maximum torque transmission and secure tool retention are required.

The Role of Pull Studs and Retention Knobs

While Weldon holders secure the cutting tool itself, pull studs and retention knobs perform a different but equally important function. These components connect the toolholder assembly to the CNC machine spindle.

A pull stud, often referred to as a retention knob, is threaded into the back of a toolholder. During machine operation, the spindle drawbar engages the pull stud, pulling the toolholder securely into the spindle taper. This connection creates the clamping force necessary to hold the toolholder firmly in place during machining.

Without a properly functioning pull stud or retention knob, the entire toolholding system becomes compromised.

Why Pull Studs and Retention Knobs Matter

Secure Toolholder Retention

The primary purpose of a pull stud is to ensure that the toolholder remains securely locked into the spindle. This secure connection is essential for maintaining machining accuracy and preventing unwanted movement.

Compatibility with Machine Systems

Different CNC machines use different spindle tapers and drawbar systems. Pull studs and retention knobs must be selected according to the machine manufacturer's specifications. Using an incorrect component can lead to improper clamping force, reduced performance, and potential damage.

Enhanced Operator Safety

Toolholder retention directly impacts workplace safety. A damaged, worn, or incorrect pull stud can fail during operation, potentially causing the toolholder to become dislodged from the spindle. Such incidents can result in equipment damage, production delays, and serious safety hazards.

Protection of Spindle Components

The spindle is one of the most expensive and critical components of a CNC machine. Properly matched and maintained pull studs help ensure even clamping force and minimize wear on spindle mechanisms, extending machine life and reducing maintenance costs.

Selecting the Correct Pull Stud or Retention Knob

Choosing the correct retention component is essential. Manufacturers should always verify compatibility based on:

• Machine spindle type

• Toolholder taper specification

• Drawbar design

• Manufacturer recommendations

• Thread size and dimensions

• Material and hardness requirements

Even components that appear similar may have slight dimensional differences that affect performance and safety.

Maintenance and Inspection Best Practices

Like all tooling components, Weldon holders, pull studs, and retention knobs require regular inspection and maintenance.

Inspect for Wear

Look for signs of wear, deformation, cracking, or thread damage. Components subjected to repeated clamping cycles can eventually fatigue and require replacement.

Verify Tightening Torque

Pull studs should always be installed using the manufacturer's recommended torque values. Over-tightening or under-tightening can compromise performance and increase failure risk.

Keep Components Clean

Dirt, chips, coolant residue, and contamination can affect tool retention and spindle contact surfaces. Regular cleaning helps maintain optimal performance.

Replace Damaged Components Immediately

Worn or damaged retention components should never remain in service. The cost of replacement is minimal compared to the potential consequences of spindle damage or tooling failure.

Preventing Downtime and Costly Failures

In CNC manufacturing, unexpected downtime can be extremely expensive. A single retention failure may lead to damaged tooling, scrapped parts, spindle repairs, and production interruptions.

Investing in high-quality Weldon shank holders, pull studs, and retention knobs helps reduce these risks. Proper component selection, regular inspection, and preventive maintenance ensure reliable machine performance and support consistent production output.

Weldon shank holders, pull studs, and retention knobs are critical elements of any CNC machining setup. Weldon holders provide secure tool retention and positive drive for demanding cutting applications, while pull studs and retention knobs ensure the toolholder remains firmly connected to the spindle. Together, these components contribute to machining accuracy, operator safety, equipment protection, and overall productivity.

By selecting the correct retention components and maintaining them properly, manufacturers can minimize downtime, extend machine life, and achieve more reliable machining performance. In today's competitive manufacturing environment, secure tool retention is not simply a best practice—it is a necessity.

FAQs

1. What is a Weldon shank holder used for?

A Weldon shank holder is used to securely hold end mills with a Weldon flat on the shank. Its set-screw locking mechanism provides positive drive and prevents tool pull-out, making it ideal for heavy-duty machining and roughing operations.

2. Why are pull studs and retention knobs important in CNC machining?

Pull studs and retention knobs secure the toolholder to the CNC spindle by allowing the drawbar to clamp the holder into the spindle taper. They are critical for maintaining machining accuracy, operator safety, and spindle performance.

3. How often should pull studs and retention knobs be inspected?

Pull studs and retention knobs should be inspected regularly as part of routine machine maintenance. Check for wear, cracks, thread damage, or deformation before use, and replace any damaged components immediately to prevent equipment failure and costly downtime.
