Lathe Mounted Concave Convex Ball Turning Tool Attachment

sold in last hours
Vendor: Twin Eagle Imports
SKU: 552
$185.00
Order in The Next to get it by
Real Time 2 Visitor Right Now

Product Type: Live Centre

Barcode: 749355909469

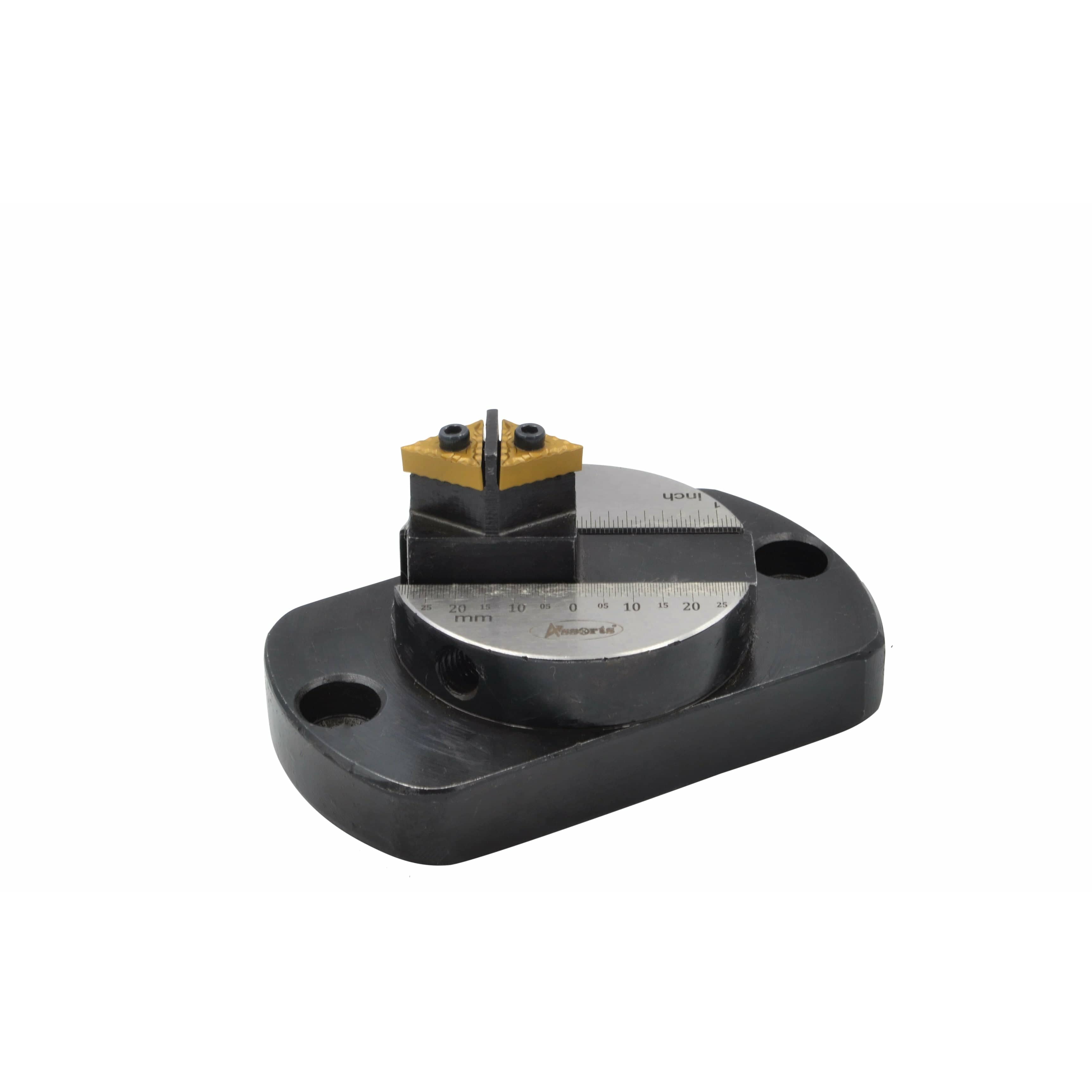

Lathe Mounted Ball Turning Attachment
Ball turning attachment to make convex balls and concave curvatures with graduation scale increments

Specifications

  • Fits directly on the cross slide of your lathe.
  • Please pay close attention to the measurements as packing might be required.
  • Separating us from the competition is the sealed bearing allowing for smooth movement rotation.
  • Metric and imperial graduations allow for specific size cuts up to 42 mm.
  • Slide increments designate a radius which would double at cut creating your diameter
  • Two cutting sides,one creating convex and the other concave.

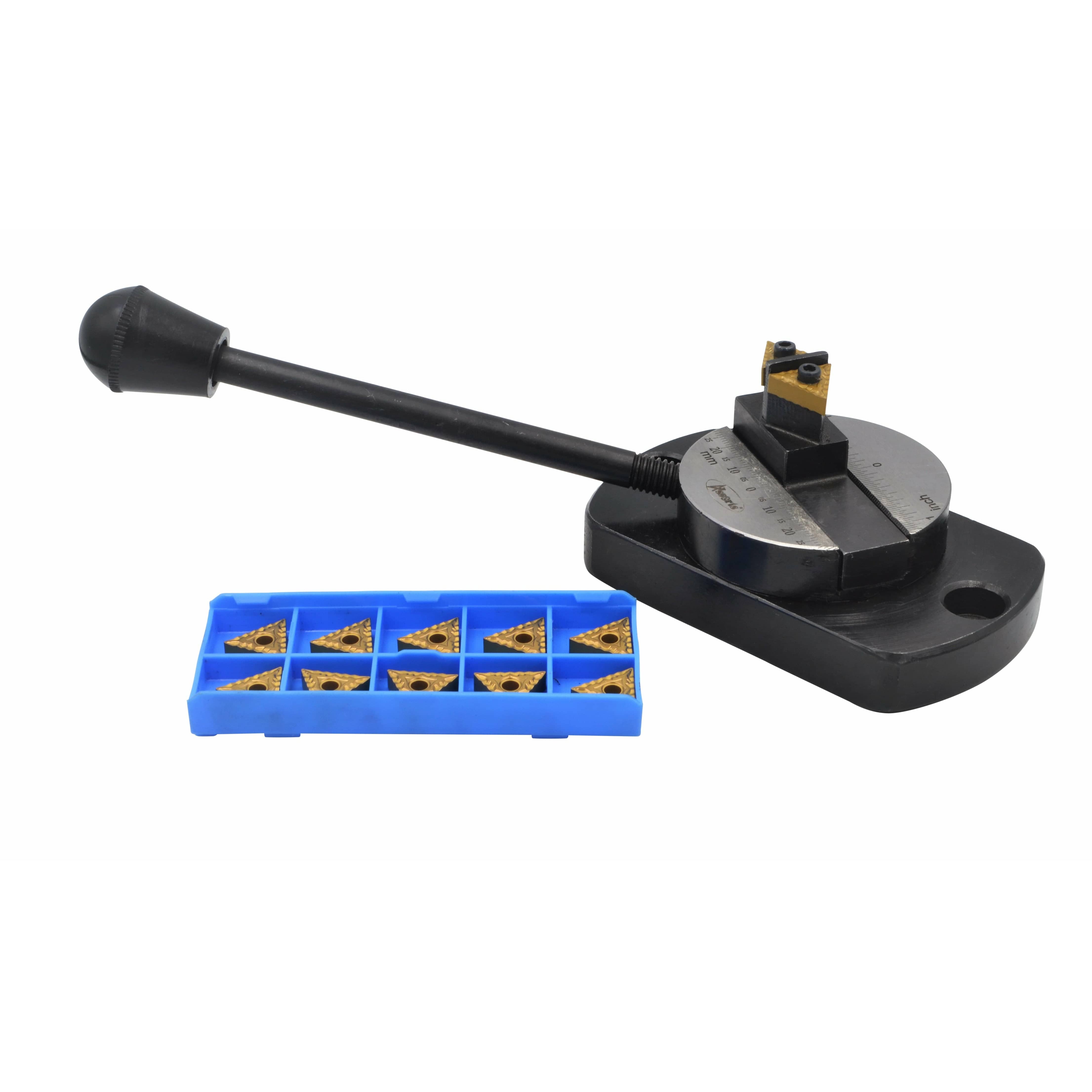

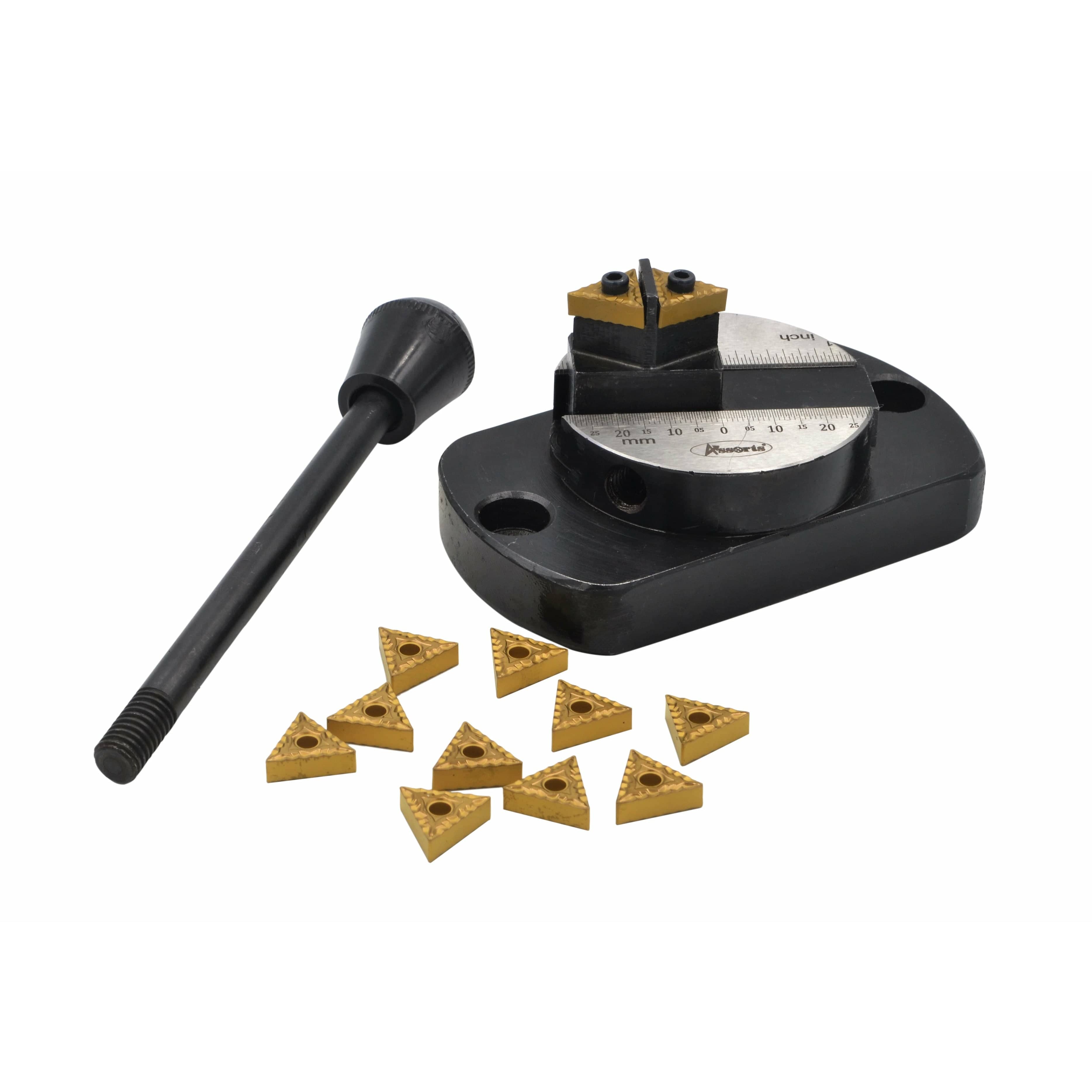

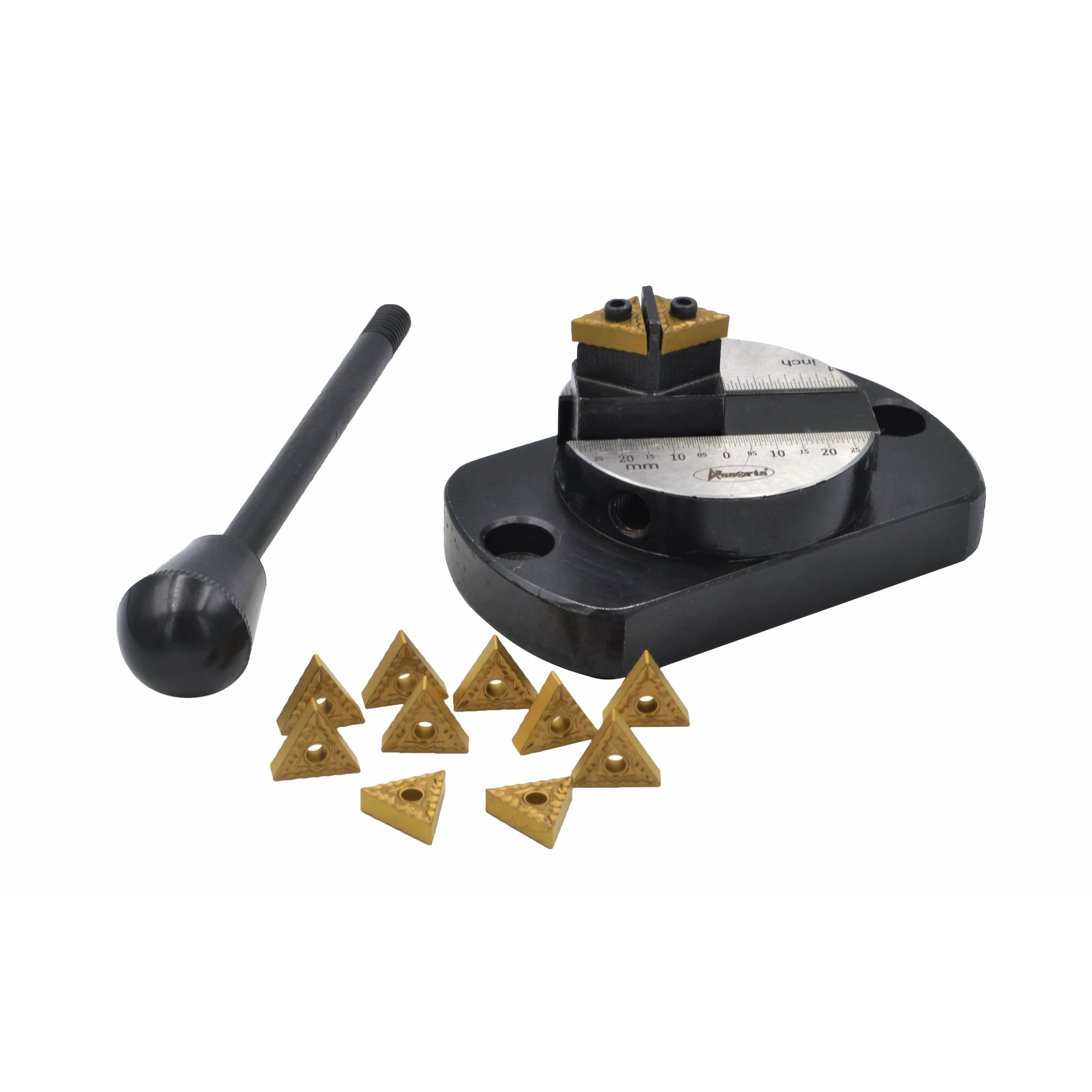

  • Supplied with 2 mounted and 10 spare TNMG16 carbide inserts
  • Cutting slide secured with grub screws.

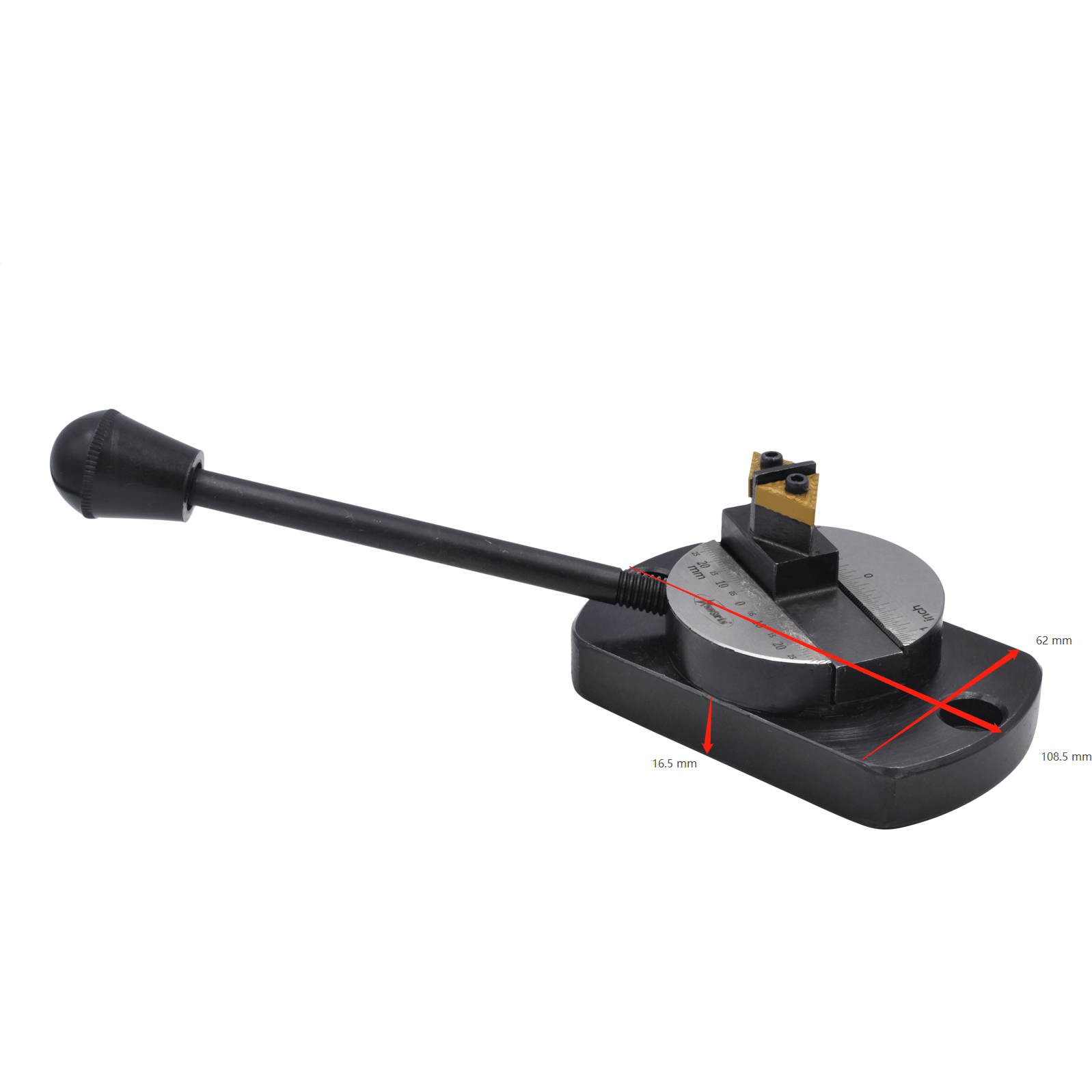

  • Overall Base Length: 108.5 mm.
  • Outside Base Width: 62 mm.
  • Base Height: 16.5 mm.

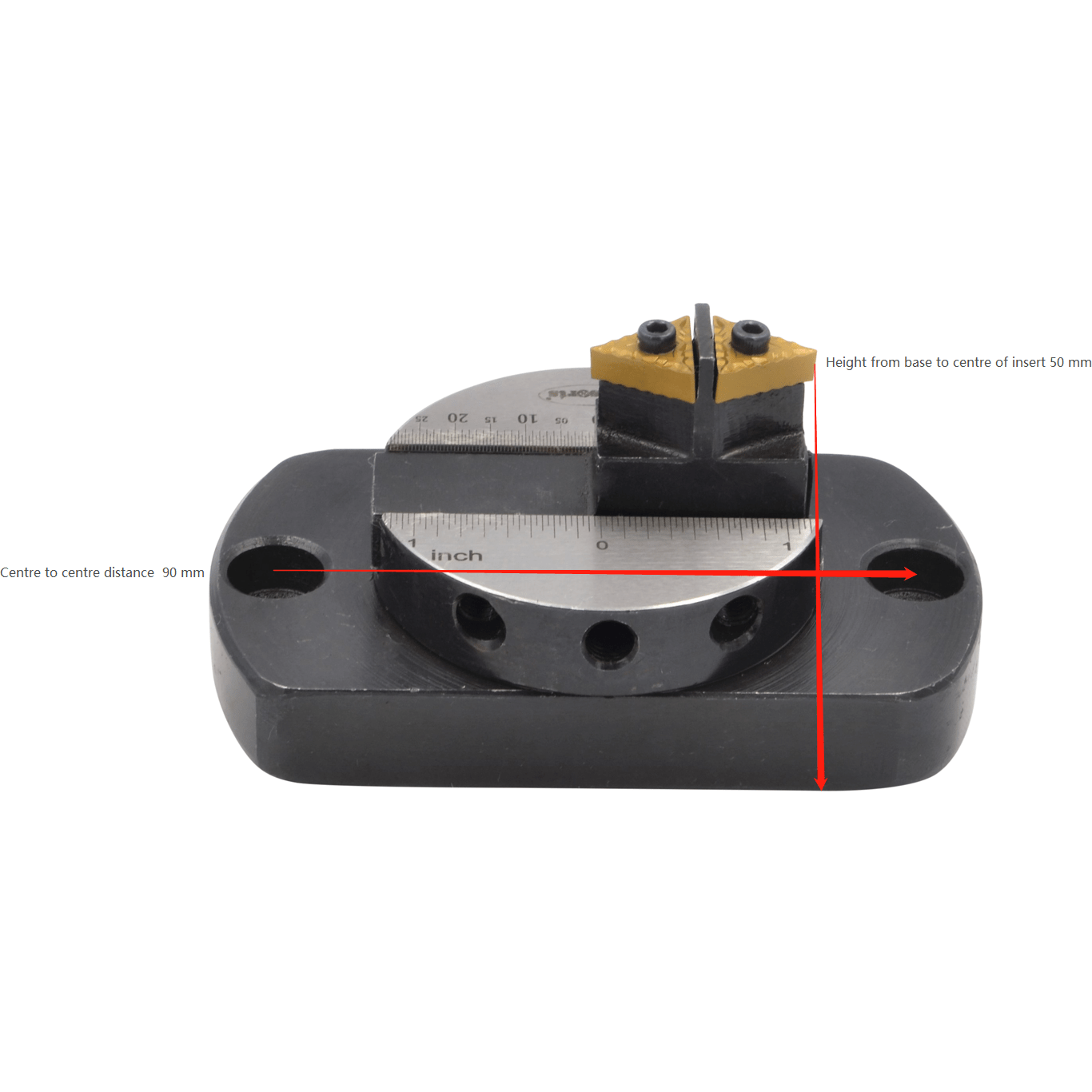

  • Height from base to insert centre: 50 mm.
  • Overall Weight: 1.2 kg.
  • Please note the video does not represent tool supplied,it is merely to show function.

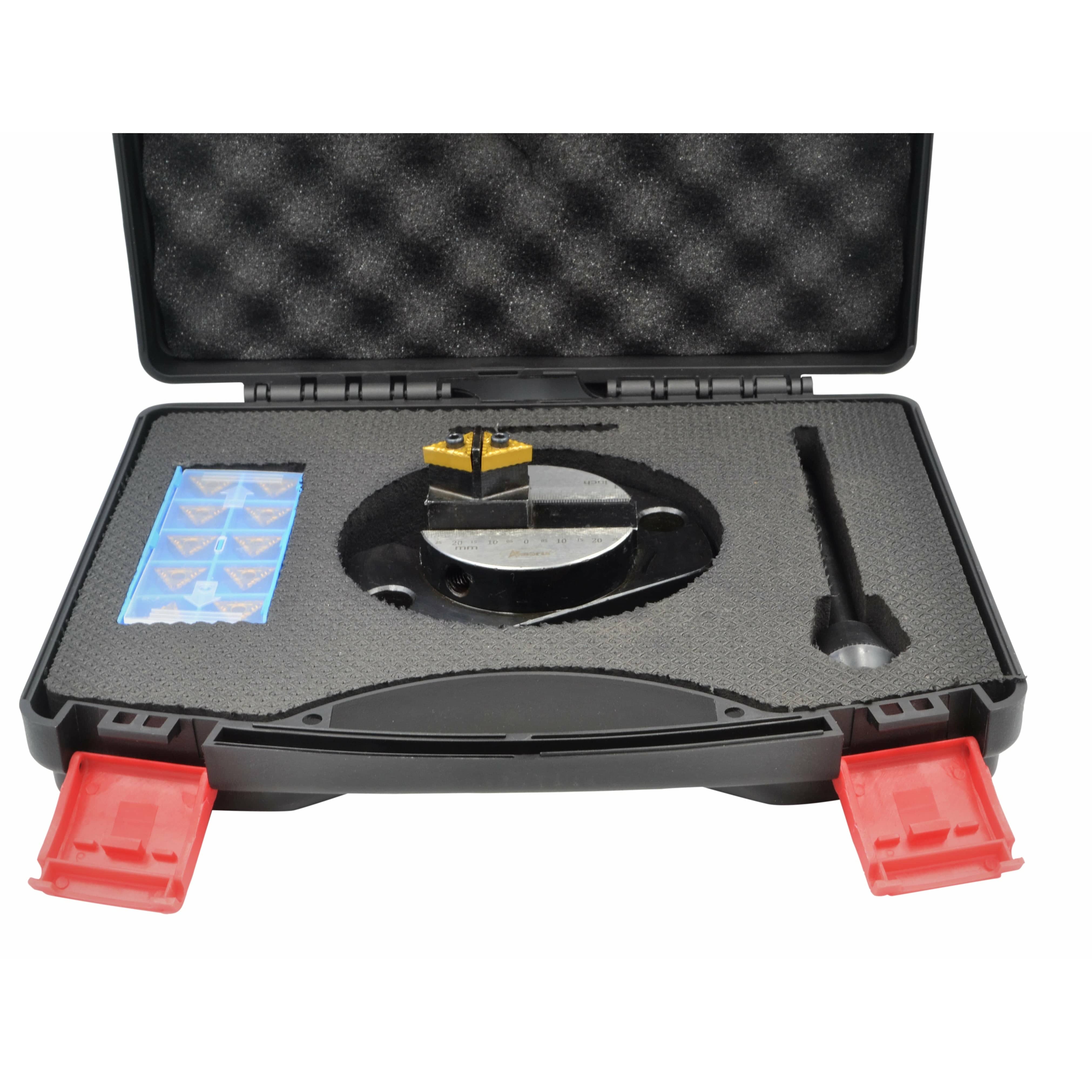

  • Supplied in custom case as seen.
