Insize Portable Leeb Hardness Tester – ISH-SPHD

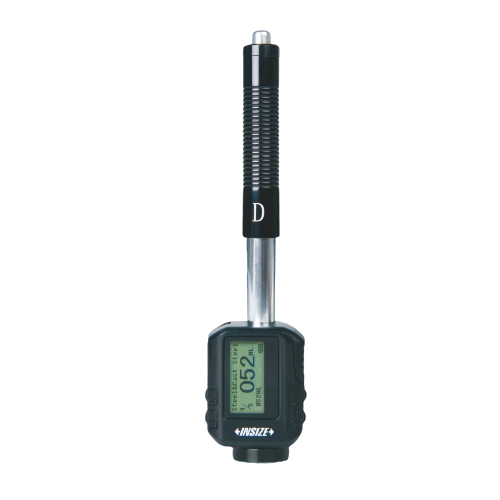

The Insize ISH-SPHD Portable Leeb Hardness Tester is a versatile device for on-site hardness testing of metals. Using the Leeb rebound method, it delivers fast and accurate results directly on the LCD display, making it suitable for inspecting large, heavy, or fixed components without dismantling. The tester supports automatic impact direction correction, quick conversion between multiple hardness scales, and offers both USB and Bluetooth data output for convenient connectivity.

Specifications :

  • Part No: ISH-SPHD
  • Hardness Scales: HL (Leeb), HB (Brinell), HRB/HRC (Rockwell), HV (Vickers), HS (Shore), Tensile Strength (MPa)
  • Measuring Range: For steel, cast steel, alloy steel, stainless steel, and non-ferrous metals (refer to material-specific range table in datasheet)
  • Resolution: 1HL, 1HV, 1HB, 0.1HRC, 0.1HRB, 1HS
  • Accuracy: ±6 HLD (at HLD = 800)
  • Applicable Parts:
    • Minimum weight: 2 kg (solid support), 0.1 kg (on plate with coupling)
    • Minimum thickness: 5 mm
    • Minimum curvature radius: 30 mm
    • Max surface roughness (Ra): 1.6 μm
  • Display: Backlit LCD
  • Memory: Stores up to 500 test results
  • Data Output: USB and Bluetooth (for printer/PC connection)
  • Compliance: ASTM A956
  • Power Supply: Rechargeable lithium battery, AC/DC adapter
  • Dimensions: 147 × 35 × 22 mm
  • Weight: Approx. 65 g
  • Product Features: Portable, lightweight, automatic direction correction, quick conversion between hardness scales, wide material compatibility, rugged design for field use
  • Included Accessories: Main unit, Impact device D, Hardness test block D, Small support ring, Cleaning brush, AC/DC adapter, USB cable, Software CD, Portable Bluetooth printer
  • Optional Accessories: Contact medium (ISH-COUPLANT), additional support rings, extra hardness test block D (ISH-BHLD)

With its robust construction and easy operation, the ISH-SPHD is ideal for field inspection, maintenance, and quality assurance in heavy industry and manufacturing. Its ability to store large amounts of test data, output results wirelessly or via USB, and operate on a rechargeable battery makes it highly suitable for mobile quality control operations.
