In precision engineering, manufacturing, and quality control, ensuring that every component meets strict tolerances is critical. Even the smallest deviation can lead to assembly issues, product failure, or costly rework. This is where verification tools such as Go/No-Go gauges, thread gauges, and radius gauges play a vital role.

Unlike measuring tools that provide numerical values, these gauges are designed for quick, reliable pass/fail inspection, making them indispensable in production environments where speed and consistency matter. By simplifying the inspection process, they help maintain quality standards, reduce human error, and ensure component interchangeability across large production batches.

What Are Verification Gauges?

Verification gauges are tools used to check whether a part falls within specified tolerance limits. Instead of giving an exact measurement, they provide a straightforward result: acceptable (Go) or unacceptable (No-Go).

These tools are widely used in industries such as:

• Automotive manufacturing

• Aerospace engineering

• Precision machining

• Tool and die making

• Mass production assembly

Their main advantage lies in efficiency—operators can quickly inspect parts without needing advanced measuring skills or complex equipment.

Go/No-Go Gauges: Fast and Reliable Tolerance Checking

Go/No-Go gauges are among the most commonly used inspection tools in manufacturing. They are designed to verify whether a part’s dimension falls within predefined limits.

How They Work

A typical Go/No-Go gauge has two ends:

• Go side: Should fit within or over the part if it meets the lower tolerance limit

• No-Go side: Should NOT fit if the part is within acceptable tolerance

If the part passes both conditions, it is considered acceptable.

Applications

Go/No-Go gauges are used for checking:

• Hole diameters

• Shaft sizes

• Slot widths

• Internal and external dimensions

They are especially valuable in high-volume production, where speed is essential. Operators can inspect parts in seconds without interpreting measurement data.

Benefits

• Eliminates guesswork in inspection

• Reduces operator error

• Speeds up quality control processes

• Ensures consistency across batches

Because of their simplicity, Go/No-Go gauges are often integrated directly into production lines, allowing real-time quality verification.

Thread Gauges & Pitch Gauges: Ensuring Thread Accuracy

Threads are critical features in mechanical components, particularly in fasteners, fittings, and machined parts. Incorrect thread size or pitch can lead to improper assembly, leaks, or mechanical failure.

Thread gauges and pitch gauges are designed to verify thread integrity quickly and accurately.

Thread Plug and Ring Gauges

These are used for checking threaded components:

• Thread plug gauges: Used for internal threads (e.g., nuts, tapped holes)

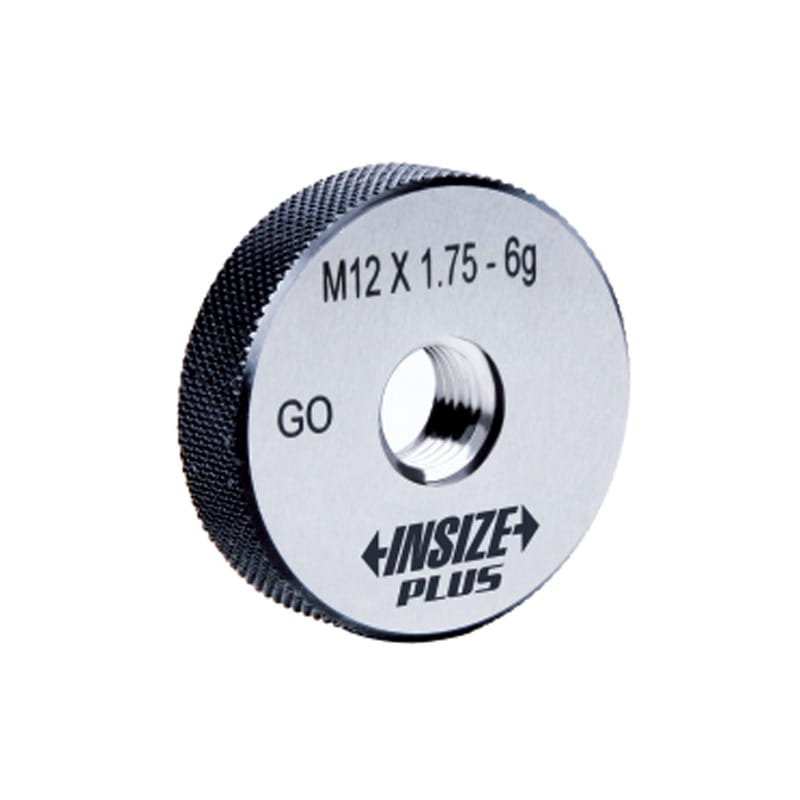

• Thread ring gauges: Used for external threads (e.g., bolts, screws)

Like Go/No-Go gauges, they feature:

• A Go side that should fit properly

• A No-Go side that should not engage fully

This ensures that the thread meets both minimum and maximum tolerance requirements.

Thread Pitch Gauges

Thread pitch gauges are used to identify and verify the pitch of a thread, which is the distance between threads.

They consist of multiple blades, each marked with a specific pitch size. The correct blade will fit perfectly into the thread profile, allowing quick identification.

Applications

Thread gauges are essential in:

• Fastener manufacturing

• Pipe and fitting inspection

• Maintenance and repair work

• CNC machining and threading operations

Benefits

• Prevents mismatched threads

• Ensures proper fit and sealing

• Reduces risk of mechanical failure

• Improves assembly efficiency

Using thread gauges ensures that components will fit together seamlessly, maintaining both structural integrity and performance.

Radius Gauges: Measuring Curvature with Precision

While linear dimensions and threads are important, many components also feature curved surfaces. Ensuring the correct radius is crucial for both function and aesthetics.

Radius gauges are designed to measure internal (concave) and external (convex) radii on parts.

How They Work

A radius gauge set typically includes multiple blades, each with a specific radius. The user matches the blade to the curved surface:

• If the blade fits perfectly, the radius is correct

• If gaps or mismatches are visible, the radius is out of tolerance

Applications

Radius gauges are commonly used in:

• Tool and die making

• Machined component inspection

• Mold manufacturing

• Automotive and aerospace parts

They are particularly useful when inspecting fillets, edges, and transitions between surfaces.

Benefits

• Ensures smooth transitions between surfaces

• Improves part functionality and fit

• Enhances product quality and finish

• Supports consistent machining results

Accurate radius measurement is essential in applications where stress distribution and aerodynamics are critical.

Why These Gauges Matter in Quality Control

In modern manufacturing, maintaining consistent quality is non-negotiable. Verification tools like Go/No-Go gauges, thread gauges, and radius gauges provide a reliable way to ensure that every part meets design specifications.

Key Advantages Across All Gauge Types

• Speed: Instant pass/fail results

• Consistency: Eliminates subjective measurement interpretation

• Efficiency: Reduces inspection time and labor costs

• Reliability: Ensures parts meet tolerance requirements

• Scalability: Ideal for mass production environments

By incorporating these tools into quality control processes, manufacturers can significantly reduce scrap rates and improve overall productivity.

Best Practices for Using Verification Gauges

To get the most accurate and reliable results, it’s important to follow proper usage and maintenance practices:

• Keep gauges clean and free from debris

• Avoid excessive force during inspection

• Store gauges in protective cases to prevent damage

• Regularly calibrate gauges to maintain accuracy

• Train operators on correct usage techniques

Proper care ensures that gauges remain accurate and extend their service life.

Choosing the Right Gauge for Your Application

Selecting the correct verification tool depends on several factors:

• Type of measurement (diameter, thread, radius)

• Tolerance requirements

• Material and surface finish of the part

• Production volume and inspection speed needs

For high-volume production, Go/No-Go gauges are ideal. For threaded components, dedicated thread gauges are essential. For curved surfaces, radius gauges provide the necessary precision.

Using the right tool for the job ensures efficient inspection and reliable results.

Go/No-Go gauges, thread gauges, and radius gauges are essential tools in any quality control process. They simplify inspection, reduce errors, and ensure that components meet strict tolerance requirements.

By providing fast and reliable verification, these tools help manufacturers maintain high standards, improve efficiency, and ensure product consistency. Whether used in small workshops or large-scale production facilities, they play a crucial role in delivering precision-engineered components.

Investing in high-quality verification gauges is not just about inspection—it’s about ensuring confidence in every part produced.
