Precision measurement is the backbone of modern manufacturing, engineering, and quality control. Whether you're working in a machine shop, inspection lab, or production floor, maintaining tight tolerances is critical to ensuring parts fit, function, and perform as intended. Among the most reliable tools for achieving this level of accuracy are height gauges and gauge blocks. These instruments are essential for measuring vertical dimensions, setting up machinery, and verifying component accuracy with confidence.

Understanding how height gauges and gauge blocks work—and how to use them effectively—can significantly improve measurement consistency, reduce errors, and enhance overall productivity.

What Are Height Gauges?

Height gauges are precision instruments designed to measure vertical distances from a flat reference surface, typically a surface plate. They are widely used in inspection, layout work, and machining processes where accuracy is critical.

Types of Height Gauges

Height gauges are available in several configurations to suit different applications:

• Vernier Height Gauges
  Traditional and highly reliable, vernier height gauges use a graduated scale and vernier reading system. They are ideal for workshops that prefer mechanical measurement tools without reliance on electronics.

• Dial Height Gauges
  These incorporate a dial indicator for easier reading and improved repeatability. They are often used in inspection environments where quick measurements are required.

• Digital Height Gauges
  Digital models provide clear, easy-to-read measurements in millimeters or inches. Many include features such as zero-setting, data output, and preset functions, making them ideal for modern quality control systems.

Key Features of Height Gauges

Height gauges are designed with precision and usability in mind. Common features include:

• Rigid Base: Ensures stability on a surface plate for accurate measurement

• Vertical Beam: Precision-ground column for smooth movement

• Slider Mechanism: Allows controlled adjustment of the measuring head

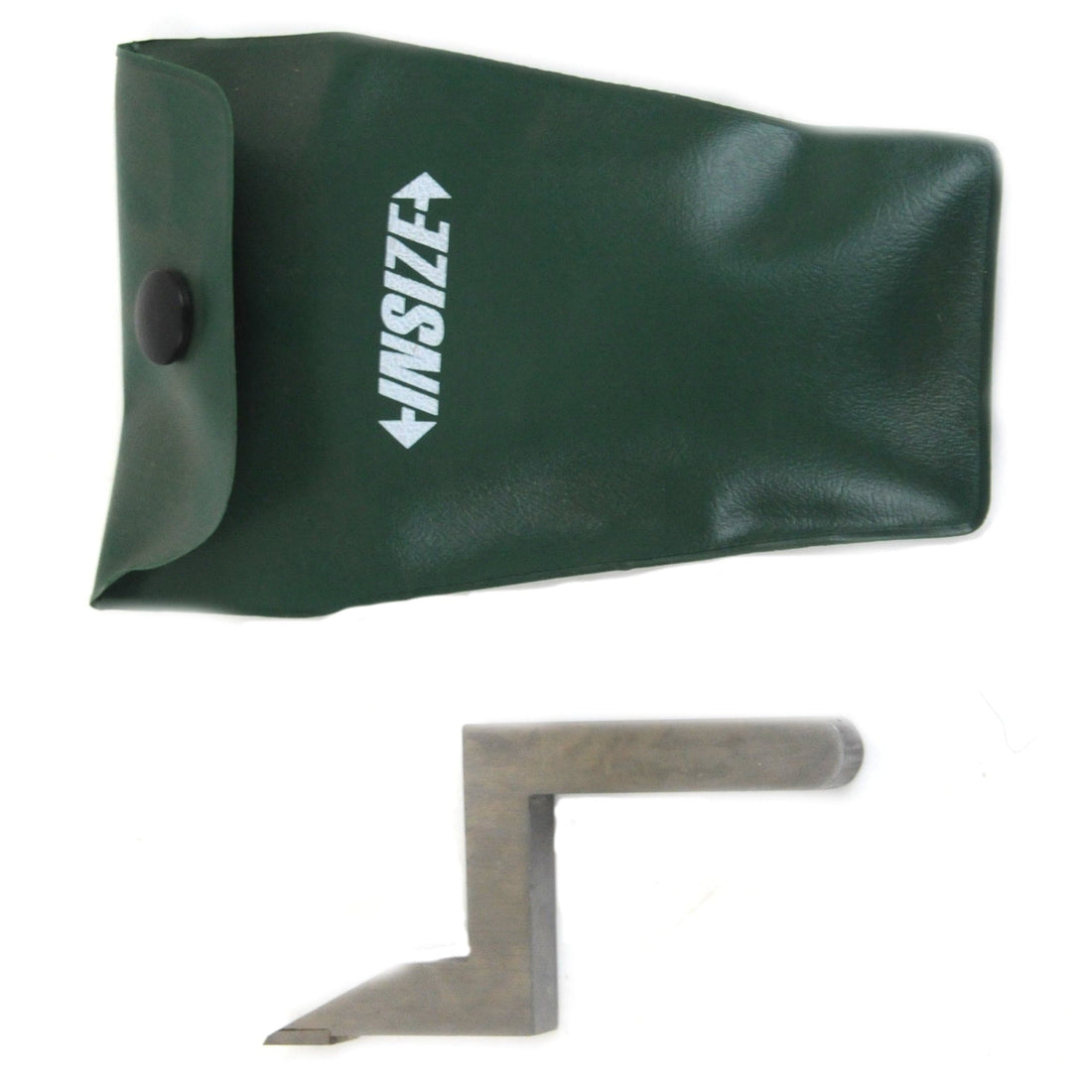

• Scriber or Probe: Used for marking or contacting the workpiece

• Fine Adjustment Control: Enables precise positioning for high-accuracy measurements

Some advanced models also include carbide-tipped scribers, interchangeable probes, and digital interfaces for data collection.

Applications of Height Gauges

Height gauges are versatile tools used across a wide range of industries. Common applications include:

• Measuring vertical dimensions of machined parts

• Marking layout lines on workpieces before machining

• Checking step heights and depths in components

• Comparative measurement against master parts

• Inspection and quality control in manufacturing processes

Their ability to provide consistent, repeatable measurements makes them indispensable in environments where precision is non-negotiable.

What Are Gauge Blocks (Slip Gauges)?

Gauge blocks, also known as slip gauges, are precision-ground blocks made to extremely tight tolerances. They are used as reference standards for length measurement and calibration.

Each gauge block has two ultra-flat and parallel measuring faces. These faces can be “wrung” together—meaning they adhere to each other through molecular attraction—allowing multiple blocks to be stacked to achieve a precise combined length.

Types of Gauge Blocks

Gauge blocks are typically supplied in sets and come in different grades depending on their intended use:

• Calibration Grade (Grade 0 or K)
  Used in metrology labs for calibrating high-precision instruments

• Inspection Grade (Grade 1 or A)
  Suitable for inspection and quality control applications

• Workshop Grade (Grade 2 or B)
  Used for general machining and setup tasks

They are also available in different materials, including hardened steel, ceramic, and carbide, each offering varying levels of wear resistance and thermal stability.

Key Features of Gauge Blocks

Gauge blocks are known for their exceptional precision and reliability. Key characteristics include:

• High Dimensional Accuracy: Manufactured to micron-level tolerances

• Excellent Surface Finish: Enables wringing for secure stacking

• Traceability: Calibrated against national or international standards

• Durability: Resistant to wear and deformation, especially in carbide or ceramic variants

These features make gauge blocks a trusted reference standard in precision measurement.

Applications of Gauge Blocks

Gauge blocks are widely used in both laboratory and workshop settings. Their applications include:

• Calibration of measuring instruments such as micrometers and calipers

• Setting up machines and fixtures for accurate machining

• Inspection of component dimensions against known standards

• Verification of measurement accuracy in quality control processes

Because they provide a known reference, gauge blocks are essential for maintaining measurement integrity across all stages of production.

Using Height Gauges and Gauge Blocks Together

Height gauges and gauge blocks are often used together to achieve highly accurate measurements and setups.

For example, gauge blocks can be stacked to a known height and used as a reference standard. The height gauge can then be set to this reference, allowing for precise comparison measurements on workpieces.

Typical Workflow:

1. Select the required gauge blocks and stack them to the desired height

2. Place the stack on a surface plate

3. Adjust the height gauge to match the gauge block height

4. Use the height gauge to measure or mark the workpiece

This combination ensures accuracy, repeatability, and confidence in measurement results.

Best Practices for Accurate Measurement

To get the most out of height gauges and gauge blocks, it’s important to follow proper usage and maintenance practices:

• Always use a clean, flat surface plate as a reference

• Keep measuring surfaces free from dust, oil, and debris

• Handle gauge blocks carefully to avoid scratches or damage

• Allow tools to acclimate to room temperature to prevent thermal expansion errors

• Use consistent measuring force when taking readings

• Store tools properly in protective cases when not in use

Following these best practices helps maintain accuracy and extends the lifespan of your measuring equipment.

Importance in Quality Control and Manufacturing

In modern manufacturing, even the smallest deviation can lead to part failure, assembly issues, or costly rework. Height gauges and gauge blocks play a critical role in ensuring that every component meets its specified tolerances.

By providing reliable measurement data, these tools help:

• Reduce scrap and waste

• Improve product consistency

• Ensure compliance with engineering standards

• Enhance overall production efficiency

Their role is especially important in industries such as aerospace, automotive, medical device manufacturing, and precision engineering, where accuracy is paramount.

Height gauges and gauge blocks are fundamental tools for accurate vertical measurement and precision calibration. While height gauges provide the flexibility to measure and mark components, gauge blocks offer a reliable reference standard that ensures measurement integrity.

Used together, they form a powerful combination that supports consistent, repeatable, and highly accurate results across a wide range of applications. Whether you're setting up machinery, inspecting parts, or performing calibration tasks, investing in high-quality height gauges and gauge blocks is essential for achieving precision and maintaining quality in any engineering environment.
