Threading holes in steel is a common task in machining, fabrication, and repair work. Achieving clean, accurate threads requires the right tools—and one of the most reliable methods is using a three-stage tap set.

This process involves progressively cutting the thread with three taps of increasing depth: the taper tap, intermediate (second) tap, and bottoming tap. Each stage removes more material while keeping the load manageable, resulting in a precise and smooth thread form even in tough materials like steel.

What Is a Three-Stage Tap Set?

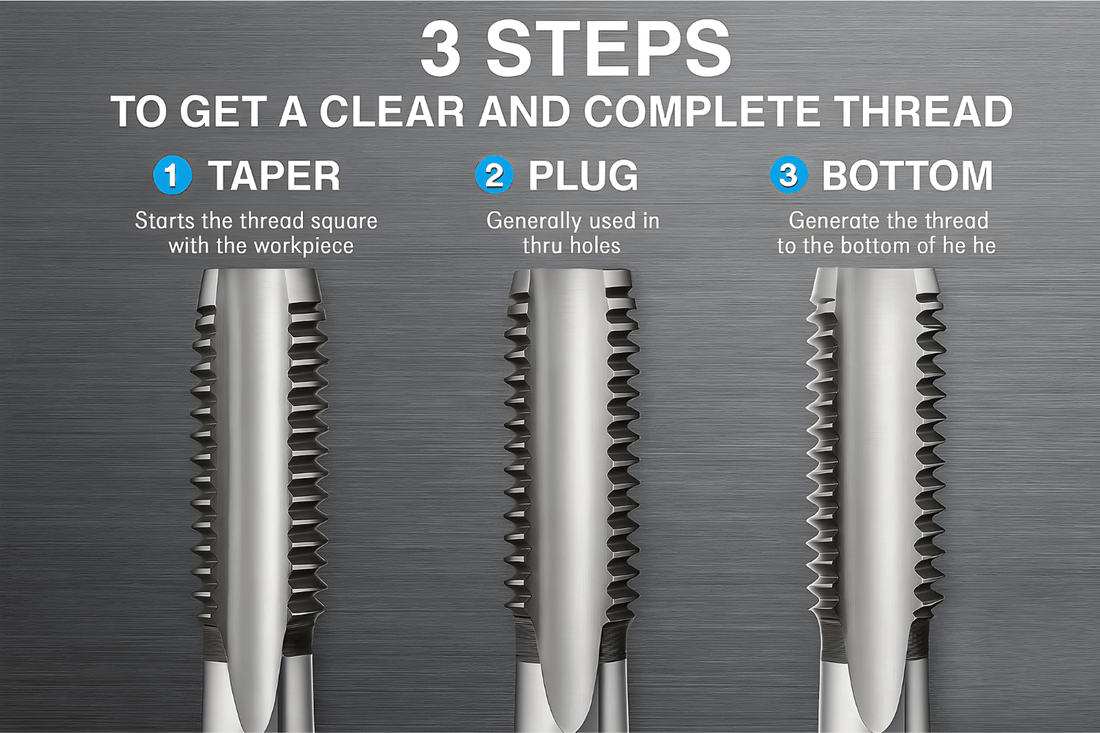

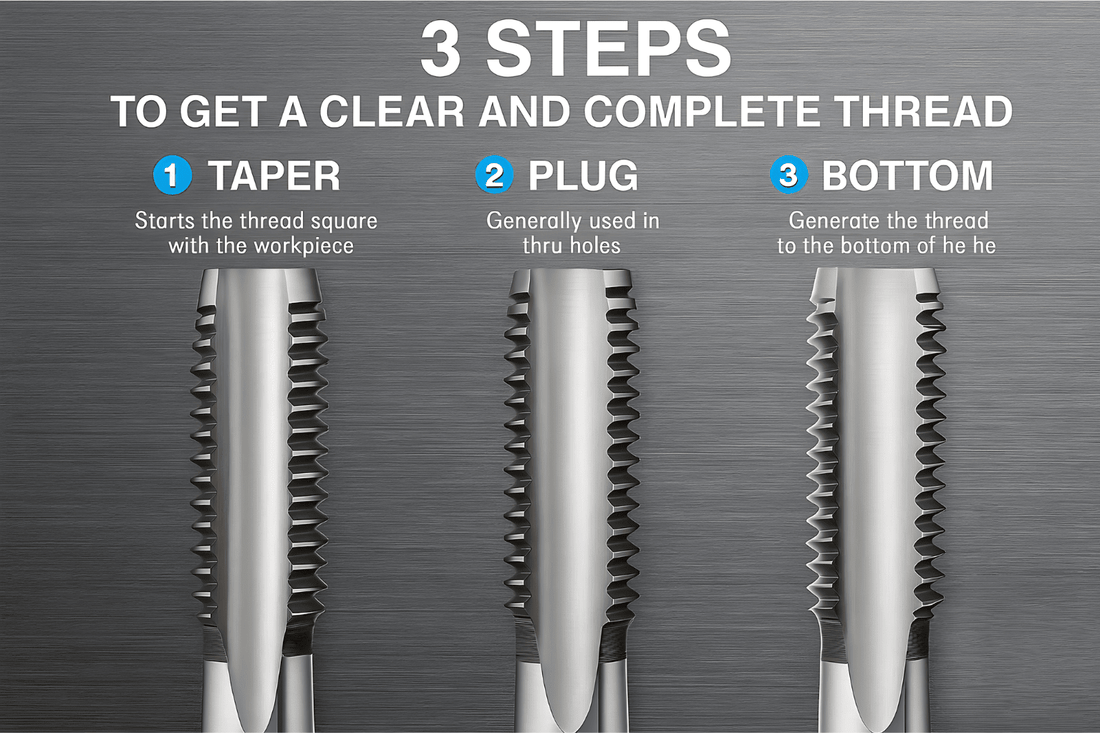

A three-stage tap set includes three taps of the same thread size and pitch, but each with a different chamfer length:

1. Taper Tap (First Tap):
   • Has 7–10 chamfered threads.
   • Used to start the thread easily and ensure correct alignment.
   • Ideal for beginning the cut in unthreaded holes.
2. Intermediate Tap (Second Tap):
   • Has 3–5 chamfered threads.
   • Deepens the thread after the initial pass, removing more material.
   • Prepares the hole for final sizing.
3. Bottoming Tap (Third Tap):
   • Has 1–2 chamfered threads.
   • Used to complete the full thread depth, especially in blind holes.
   • Produces the final, full-form thread profile.

Tools and Equipment You’ll Need

Before you begin, gather the following:

• Three-stage tap set (Taper, Intermediate, Bottoming)
• Drill bit of the correct tapping size (check a tap drill chart)
• T-handle tap wrench or suitable tap holder
• Cutting fluid (sulphur-based or tapping oil for steel)
• Vice or workholding device
• Safety gear: safety glasses, gloves, and secure work setup

Step-by-Step Guide to Threading Steel with a Three-Stage Tap

1. Drill the Tapping Hole

Use the correct tap drill size for your desired thread. For example, an M10 × 1.5 thread requires an 8.5 mm drill. Drill the hole to the proper depth and alignment, keeping the drill perpendicular to the surface.

Tip: For blind holes, add a few extra millimetres of depth to allow full thread engagement.

2. Apply Cutting Fluid

Apply a generous amount of cutting fluid to the hole and the tap. Lubrication reduces friction, improves chip evacuation, and prevents tap breakage—especially important when working with steel.

3. Start with the Taper Tap

Insert the taper tap into the tap wrench and align it squarely to the hole. Rotate clockwise (for right-hand threads) with gentle, even pressure.

• Turn half to one full turn forward, then a quarter turn backward to break and clear chips.
• Continue this pattern until the taper tap has cut through or reached full depth.

4. Switch to the Intermediate Tap

Once the taper tap has established the thread, replace it with the intermediate tap.

• Reapply cutting fluid.
• Follow the same forward-and-reverse tapping motion.
• This stage deepens the thread and refines its shape.

5. Finish with the Bottoming Tap

For blind holes or when full thread depth is needed, use the bottoming tap to complete the job. Ensure frequent cleaning and lubrication—chips can easily pack at the bottom of a blind hole and cause tool damage if not cleared.

6. Inspect and Clean

After threading, remove the tap and clean the hole using compressed air or a brush. Inspect the threads visually or test them with a threaded fastener or gauge to ensure smooth engagement and correct fit.

Tips for Success

• Keep taps aligned squarely with the hole at all times.
• Use appropriate cutting speed—avoid forcing the tap.
• Never use a tap dry when threading steel machine tools.
• Back the tap out frequently to clear chips.
• For deep or hard materials, use a tap guide block to maintain alignment.

Common Mistakes to Avoid

• Skipping stages: Jumping straight to the bottoming tap increases risk of breakage.
• No lubrication: Leads to excessive heat, galling, and poor finish.
• Over-torquing: Applying too much force can snap the tap, especially in smaller sizes.
• Incorrect drill size: Undersized holes cause binding; oversized holes result in weak threads.

Conclusion

Using a three-stage tap is the best practice for cutting precise internal threads in steel, especially when working by hand. Each tap plays an essential role in gradually forming the thread, minimizing stress on the tool, and ensuring a clean, accurate result.

With proper technique, lubrication, and care, you can achieve professional-grade threads that ensure reliable assembly and long-term performance—whether for repair, production, or custom fabrication.
