Lathe machining is one of the most fundamental processes in metalworking and manufacturing. Whether producing simple shafts or complex precision components, the quality of the cutting tools used directly affects productivity, accuracy, and surface finish. Lathe cutting tools and inserts are designed to perform turning, facing, grooving, and threading operations efficiently while maintaining consistent dimensional tolerances.

Selecting the correct cutting tools is critical for achieving optimal machining results. The right combination of insert geometry, coating, and tool holder design allows machinists to maximize cutting performance, reduce tool wear, and maintain stable machining conditions. In modern machining environments—especially CNC turning—carbide inserts and precision tool holders play a key role in improving efficiency and reducing downtime.

Understanding Lathe Cutting Tools

Lathe cutting tools are used to remove material from a rotating workpiece. As the workpiece spins in the lathe spindle, the cutting tool moves along the surface to shape the material into the desired form. These tools are designed to withstand high cutting forces, temperatures, and continuous contact with the material being machined.

Historically, lathe tools were made from high-speed steel (HSS) and were ground manually to shape. While HSS tools are still used in some manual machining applications, modern manufacturing primarily relies on indexable carbide insert tooling. These systems use replaceable inserts mounted onto tool holders, providing greater durability and improved cutting speeds.

Indexable insert tooling offers several advantages. Instead of sharpening tools manually, machinists can simply rotate or replace the insert when it becomes worn. This significantly reduces machine downtime and ensures consistent cutting geometry throughout production runs.

Carbide Inserts

Carbide inserts are the most widely used cutting elements in modern lathe operations. Manufactured from tungsten carbide powders bonded with cobalt, these inserts are extremely hard and capable of maintaining sharp cutting edges even at high temperatures.

Carbide inserts are available in many shapes, sizes, and geometries, each designed for specific machining operations. Choosing the correct insert type is essential for achieving optimal cutting performance.

Common Insert Shapes

One of the most commonly used insert shapes is the CNMG insert, which features a rhombic shape with an 80-degree cutting edge angle. CNMG inserts are widely used for general turning because they provide strong cutting edges and multiple usable corners. This design allows machinists to rotate the insert when one edge wears out, extending tool life and reducing costs.

Other popular insert shapes include DNMG, TNMG, and VNMG inserts. Each geometry offers different advantages depending on the cutting application, such as improved accessibility to tight corners or reduced cutting forces.

Threading Inserts

Threading inserts are specifically designed to cut precise internal or external threads on a lathe. These inserts have carefully formed cutting profiles that match the required thread standard, such as metric, UNC, UNF, or BSP threads.

Unlike general turning inserts, threading inserts must produce extremely accurate thread forms. The insert geometry ensures that the correct thread pitch, flank angle, and depth are maintained during machining. Threading inserts are widely used in manufacturing industries that require reliable threaded components, including automotive, aerospace, and general engineering.

Because threading operations are sensitive to tool wear and vibration, selecting a high-quality insert with the correct geometry and coating is essential for maintaining thread accuracy and preventing tool failure.

Grooving and Parting Inserts

Grooving inserts are used to cut narrow slots, grooves, and parting operations. These inserts have thin cutting edges designed to penetrate deep into the workpiece while maintaining stability.

Parting inserts are commonly used to separate finished components from bar stock during production turning operations. They must withstand high cutting forces while maintaining rigidity to prevent chatter or insert breakage.

Modern grooving systems often feature advanced chip-breaking geometries that help control chip formation. This is particularly important in deep grooving operations, where long chips can become tangled and interfere with machining.

Advantages of Carbide Inserts

Carbide inserts offer several advantages compared with traditional high-speed steel cutting tools.

One of the most significant benefits is higher cutting speeds. Carbide inserts maintain hardness even at elevated temperatures, allowing machinists to run machines faster without excessive tool wear. This results in increased productivity and shorter cycle times.

Another advantage is extended tool life. Carbide inserts resist abrasion and heat more effectively than HSS tools, meaning they can remain in service for longer periods before needing replacement.

Carbide inserts also provide consistent cutting performance. Because inserts are manufactured with precise geometry, they deliver repeatable results across multiple machining operations. This consistency is particularly important in CNC production environments where dimensional accuracy is critical.

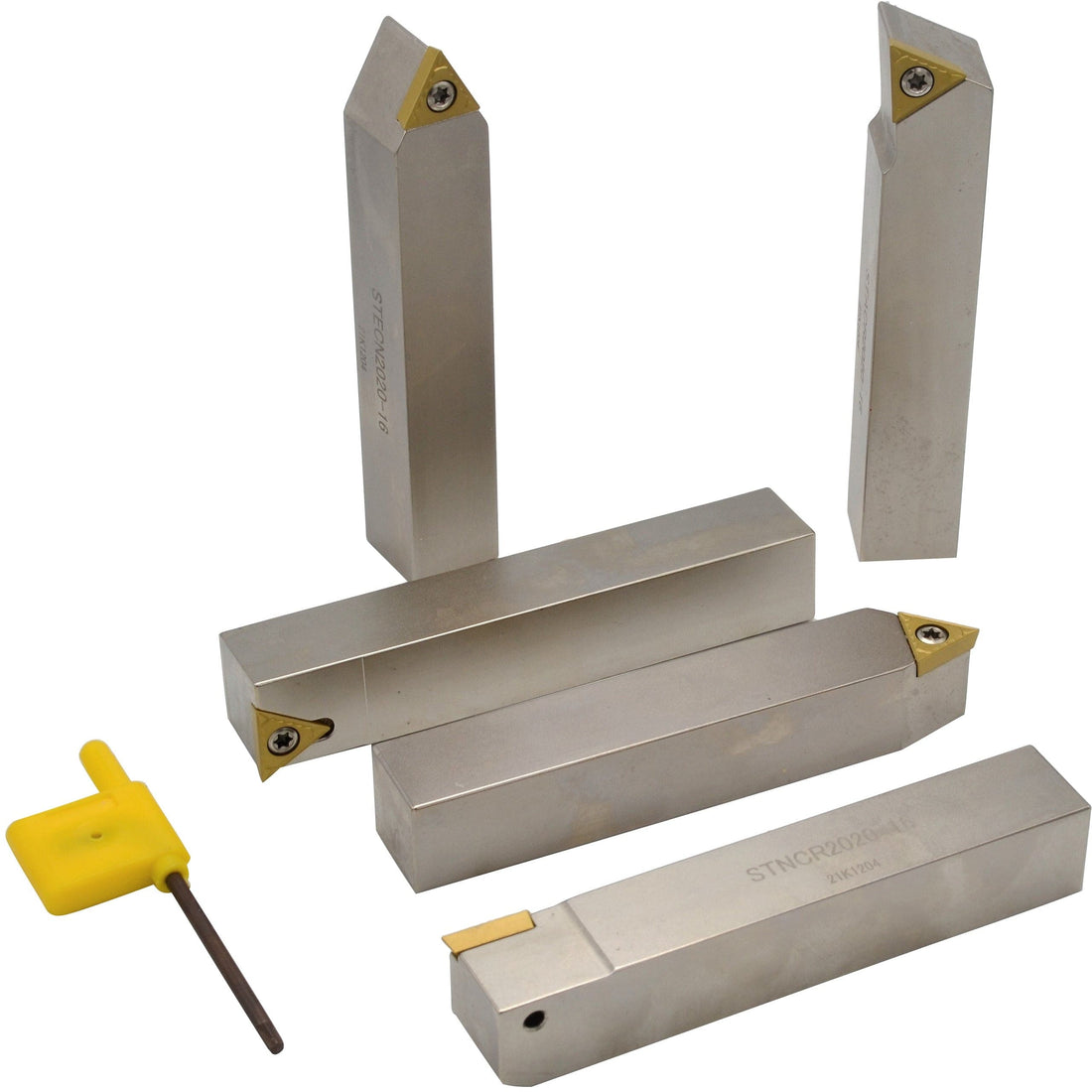

Lathe Tool Holders

While carbide inserts perform the cutting action, lathe tool holders are responsible for securing the insert and positioning it correctly relative to the workpiece. A well-designed tool holder ensures rigidity, proper insert alignment, and reliable cutting performance.

Lathe tool holders are manufactured to precise tolerances so that inserts seat securely and maintain the correct cutting angles. Any movement or instability in the tool holder can lead to poor surface finish, vibration, or insert damage.

Sidelock Holders

Sidelock holders use a locking screw to clamp the insert firmly into position. These holders are known for their simplicity and reliability, making them a common choice for general turning applications.

The sidelock mechanism ensures the insert remains secure during heavy cutting operations. This design is particularly useful when machining tough materials that generate high cutting forces.

Clamp-Type Holders

Clamp-type tool holders use a top clamp to secure the insert in its seat. This design distributes clamping pressure evenly across the insert, providing excellent stability during machining.

Clamp-type holders are widely used in CNC turning applications where high precision and repeatability are required. They allow inserts to be changed quickly and ensure the cutting edge remains accurately positioned.

Quick-Change Tool Systems

Quick-change tooling systems are designed to reduce setup times and improve productivity. These systems allow machinists to swap tools rapidly without the need for extensive adjustments.

In production environments where multiple tools are required for different operations—such as roughing, finishing, grooving, and threading—quick-change systems can significantly reduce machine downtime.

These systems also improve repeatability because tool positions remain consistent when swapped in and out of the tool post.

Matching Tools to the Task

Selecting the correct combination of insert geometry, coating, and tool holder design is essential for achieving optimal machining performance. Different materials and operations require specific tooling solutions to maximise efficiency and tool life.

For example, rough turning operations often use stronger inserts with thicker cutting edges to handle heavy material removal. Finishing operations, on the other hand, require sharper inserts with lighter cutting forces to achieve smooth surface finishes.

Chip control is another important consideration. Proper insert geometry ensures chips break efficiently and evacuate safely from the cutting zone. Poor chip control can lead to tool damage, surface defects, and machine downtime.

Machine rigidity, cutting speed, and feed rate must also be considered when selecting tooling. A well-matched tool setup ensures stable cutting conditions and minimises vibration.

Improving Machining Efficiency

Modern lathe tooling systems are designed to maximise productivity while maintaining precision. By selecting high-quality carbide inserts and rigid tool holders, manufacturers can achieve faster machining speeds, longer tool life, and improved surface finishes.

Regular inspection of inserts and tool holders also helps maintain consistent performance. Worn or damaged inserts should be replaced promptly to prevent poor machining results and potential damage to the workpiece.

In high-production environments, proper tooling selection can significantly reduce manufacturing costs by improving cycle times and minimising machine downtime.

Lathe cutting tools and inserts are essential components of modern machining operations. From general turning and facing to threading and grooving, the right tooling setup ensures accuracy, efficiency, and consistent performance.

Carbide inserts provide high-speed capability, extended tool life, and reliable cutting results across a wide range of materials. When paired with rigid and well-designed tool holders, they allow machinists to achieve superior machining outcomes.

By carefully matching inserts and holders to the specific machining task, manufacturers can maximise productivity, reduce vibration, and maintain high-quality surface finishes. In today’s competitive manufacturing environment, selecting the correct lathe tooling is a key factor in achieving efficient and reliable machining operations.
