Micrometers are among the most accurate and reliable measuring instruments used in engineering, machining, and quality assurance. Designed to measure dimensions with extreme precision—often down to a few microns—they are indispensable in industries where tight tolerances and exact measurements are critical. Whether you are working in a machine shop, inspection lab, or production line, micrometers provide the confidence needed to ensure parts meet exact specifications.

At their core, micrometers operate using a finely threaded screw mechanism. As the spindle rotates, it moves incrementally toward or away from the anvil, allowing highly controlled measurement of a workpiece. This precision mechanical movement, combined with clear graduations or digital readouts, enables users to achieve consistent and repeatable measurements far beyond what standard rulers or calipers can offer.

Why Micrometers Matter in Precision Engineering

In modern manufacturing, even the smallest dimensional deviation can lead to product failure, reduced efficiency, or costly rework. Micrometers play a crucial role in preventing these issues by providing precise measurements for components such as shafts, bearings, fasteners, and machined parts. Their ability to measure within microns ensures that parts fit together perfectly and function as intended.

Micrometers are especially important in industries like aerospace, automotive, medical device manufacturing, and toolmaking. In these fields, precision is not just a requirement—it is a necessity. For example, a slight variation in diameter on a shaft can affect bearing performance, while an incorrect depth measurement can compromise assembly integrity.

Types of Micrometers

Different applications require different types of micrometers. Each type is designed to measure specific features and geometries accurately.

Outside Micrometers

Outside micrometers are the most commonly used type. They are designed to measure external dimensions such as thickness, diameter, and width. These micrometers feature a flat anvil and spindle, making them ideal for measuring parts like rods, sheets, and cylindrical components.

They are widely used in machining and fabrication environments due to their versatility and ease of use. Available in both analog and digital formats, outside micrometers are often the first choice for general-purpose precision measurement.

Inside Micrometers

Inside micrometers are used to measure internal dimensions such as bore diameters, hole sizes, and internal widths. Unlike outside micrometers, they typically use extension rods or interchangeable heads to accommodate different measurement ranges.

These tools are essential for applications where internal tolerances must be tightly controlled, such as engine cylinders, pipe fittings, and precision housings. Accurate internal measurement ensures proper fit and function of mating components.

Depth Micrometers

Depth micrometers are specifically designed to measure the depth of holes, grooves, slots, and recesses. They feature a flat base that rests on a reference surface, with a spindle that extends downward into the feature being measured.

These micrometers are commonly used in machining operations where precise depth control is required, such as milling keyways, cutting grooves, or verifying step heights. Their accuracy ensures that components meet design specifications and perform as intended.

Spline and Specialized Micrometers

Spline micrometers and three-point micrometers are designed for specialized applications. Spline micrometers are used to measure splined shafts, gear teeth, and other complex profiles that standard micrometers cannot accurately capture.

Three-point micrometers, on the other hand, are commonly used for high-precision internal measurements. They provide greater stability and accuracy by contacting the surface at three points, reducing measurement error and improving repeatability.

These specialized tools are essential in industries that require precise measurement of complex geometries, such as gear manufacturing and precision engineering.

Key Features of Micrometers

Modern micrometers come with a range of features designed to improve usability, accuracy, and durability. Some of the most important features include:

• High-precision screw threads that enable accurate and consistent measurement

• Ratchet stop or friction thimble to ensure consistent measuring force

• Clear graduations or digital displays for easy reading

• Carbide measuring faces for wear resistance and long-term accuracy

• Locking mechanisms to hold measurements in place

• Data output capabilities in digital models for integration with inspection systems

These features make micrometers not only precise but also user-friendly and suitable for a wide range of applications.

Best Practices for Using Micrometers

To achieve accurate and reliable measurements, proper handling and technique are essential. Even the most precise instrument can produce incorrect results if used improperly.

Keep Measuring Faces Clean

Before taking any measurement, ensure that the anvil and spindle faces are clean and free of dust, oil, or debris. Even a small particle can significantly affect measurement accuracy at the micron level.

Use Consistent Measuring Force

Always use the ratchet stop or friction sleeve when tightening the micrometer. This ensures a consistent measuring force, preventing over-tightening and reducing the risk of measurement error.

Check Calibration Regularly

Micrometers should be checked and calibrated regularly using gauge blocks or calibration standards. This ensures that the instrument maintains its accuracy over time and continues to deliver reliable results.

Avoid Temperature Variations

Temperature can affect both the micrometer and the workpiece. Whenever possible, measurements should be taken in a controlled environment to minimize thermal expansion or contraction.

Store Properly

When not in use, store micrometers in their protective case. This prevents damage, protects against dust and moisture, and helps maintain calibration accuracy.

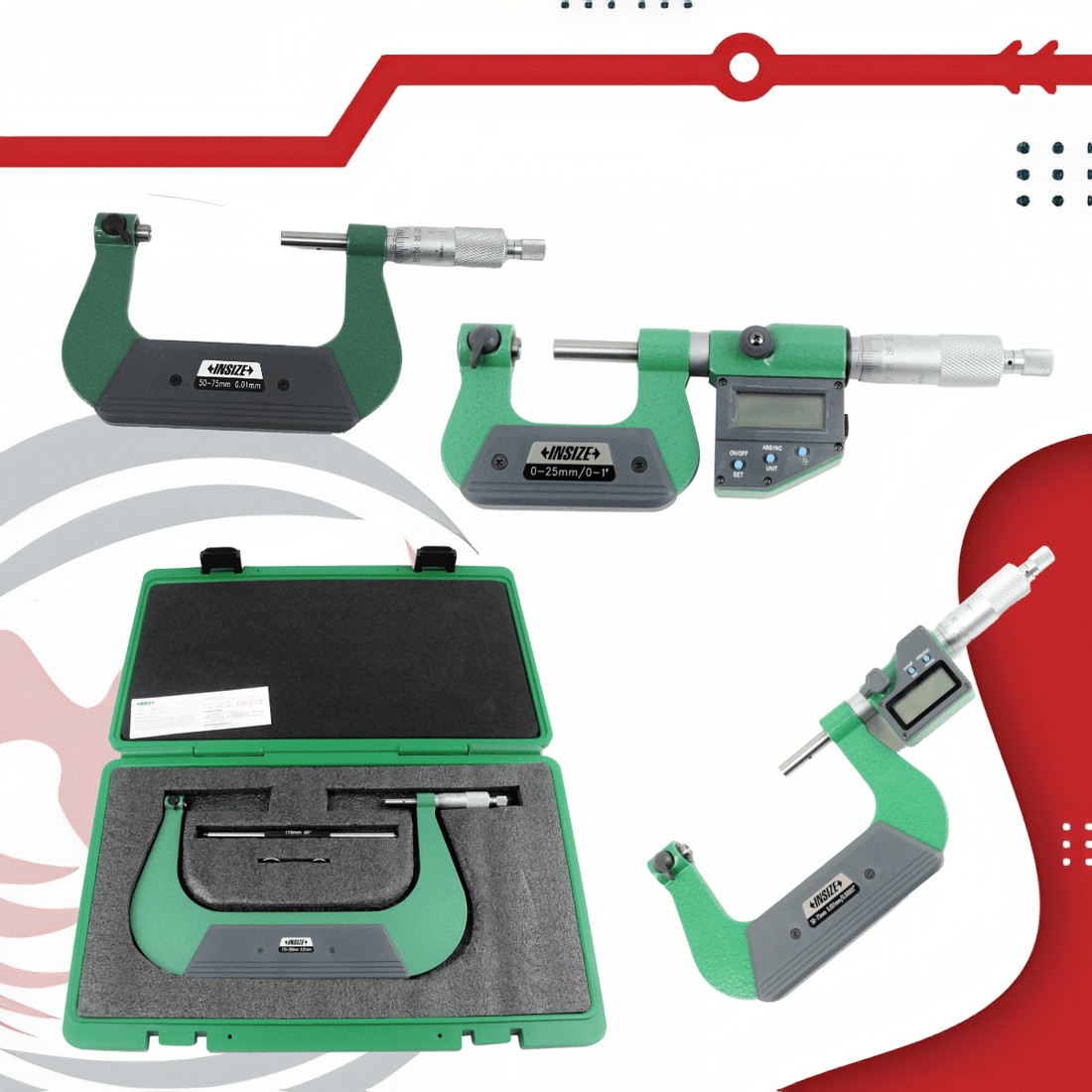

Digital vs Mechanical Micrometers

Both digital and mechanical (analog) micrometers have their advantages, and the choice often depends on the application and user preference.

Digital micrometers offer easy-to-read displays, quick unit conversion (mm/inch), and data output for recording measurements. They are ideal for modern inspection processes and environments where efficiency and data tracking are important.

Mechanical micrometers, including vernier and dial types, do not require batteries and are highly reliable in harsh environments. They are often preferred for their simplicity and durability.

Many workshops use a combination of both types to suit different tasks and working conditions.

Applications of Micrometers

Micrometers are used across a wide range of industries and applications, including:

• Measuring shaft diameters and thickness in machining operations

• Inspecting precision components in quality control labs

• Verifying tolerances in automotive and aerospace parts

• Measuring small features in toolmaking and fabrication

• Checking wear on components during maintenance and repair

Their versatility and accuracy make them an essential tool for any professional working with precision components.

Micrometers are a cornerstone of precision measurement, offering unmatched accuracy for a wide range of applications. From outside and inside micrometers to depth and specialized variants, these tools provide the reliability needed to maintain tight tolerances and ensure product quality.

By following proper usage techniques—such as keeping measuring faces clean, applying consistent force, and maintaining calibration—users can achieve highly accurate and repeatable results. Whether you choose a digital or mechanical model, investing in high-quality micrometers is essential for achieving precision at the micron level.

In today’s demanding manufacturing environment, where accuracy directly impacts performance and reliability, micrometers remain one of the most trusted tools for professionals who require exact measurements every time.
