Small radii and fillets are often overlooked in machining and engineering, yet they play a vital role in component strength, fatigue resistance, and assembly fit. These seemingly minor design features can influence how loads are distributed, how parts mate together, and how long a component performs reliably in service. Radius gauges provide a fast, reliable method of verifying these features and ensuring they meet design specifications.

In modern manufacturing environments where precision and repeatability are critical, radius gauges remain one of the most practical and efficient inspection tools available. They allow machinists, inspectors, and engineers to confirm radii quickly without complex measurement setups or time-consuming procedures.

What Are Radius Gauges?

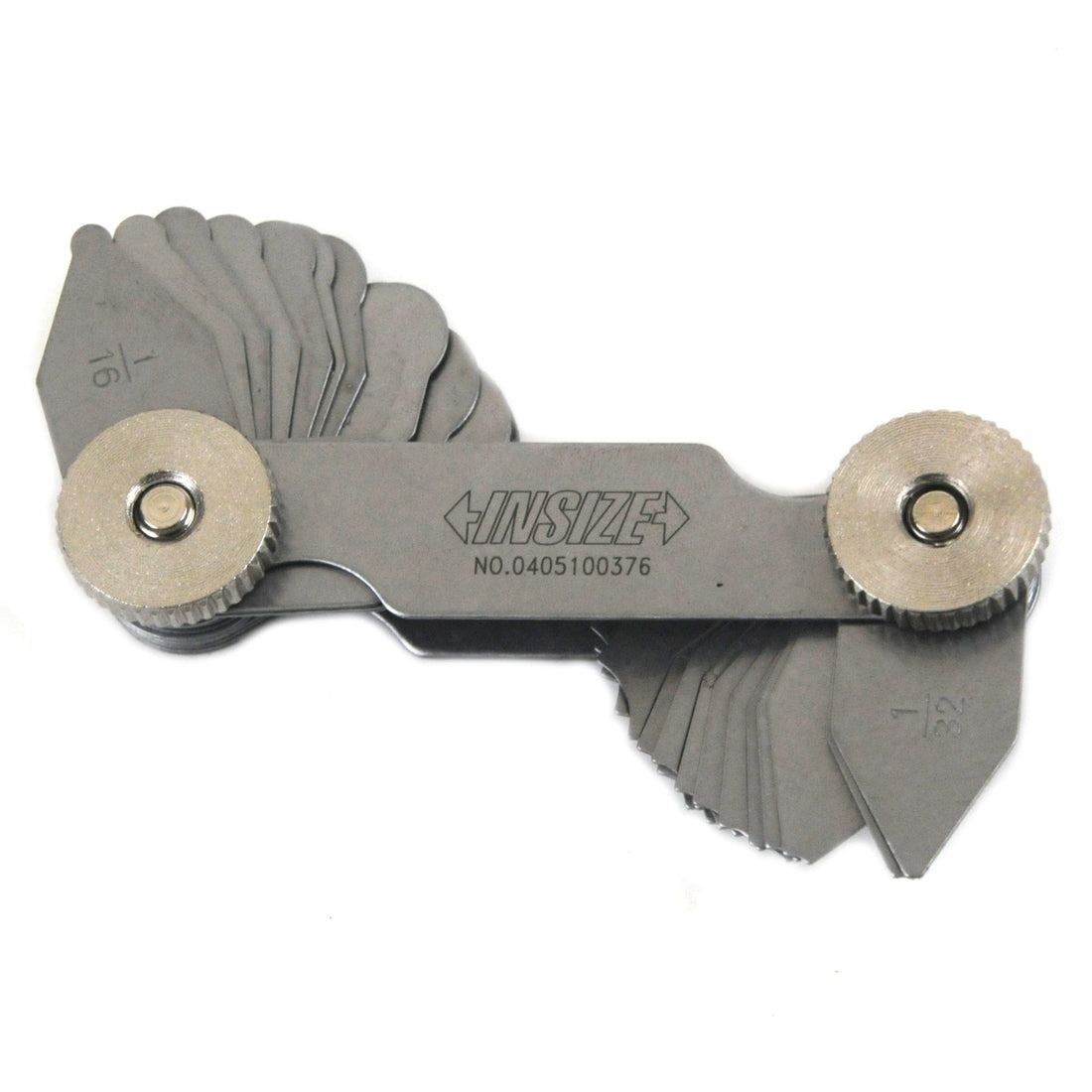

Radius gauges are precision-formed templates used to check the curvature of internal and external radii on machined parts, tools, and components. Each gauge blade is manufactured to a specific radius size, enabling a simple comparison between the gauge and the feature being inspected.

These tools are commonly used to verify:

• Internal radii in grooves, pockets, and slots


• External radii on edges and corners


• Fillets on machined components


• Formed or ground tool profiles

Radius gauges are available in both metric and imperial sets, covering a wide range of sizes to suit different applications. Sets typically include multiple blades that fold into a compact holder, allowing quick selection and easy storage.

Because they rely on visual and physical comparison rather than numerical measurement, radius gauges are ideal for fast inspections where speed and practicality are essential.

Why Radius Accuracy Matters

Accurate radii are not just a matter of aesthetics — they directly affect mechanical performance and reliability. Incorrect radii can compromise structural integrity, interfere with assembly, and lead to premature component failure.

Key risks associated with inaccurate radii include:

Stress Concentrations

Sharp corners or incorrect radii can create stress concentration points. Under repeated loading, these areas are more likely to crack or fail, particularly in high-stress applications such as automotive, mining, aerospace, and heavy engineering.

Assembly Fit Issues

Components often rely on specific radii to ensure proper mating. If a radius is too large or too small, parts may not seat correctly, causing alignment problems or unwanted movement.

Fatigue and Wear

Fillets are often designed to distribute load and reduce fatigue. When radii deviate from specification, fatigue life can decrease significantly, leading to early wear or failure.

Functional Performance

In tooling applications, radius profiles directly affect cutting performance, chip formation, and tool life. Accurate verification ensures consistency across production runs.

Radius gauges provide a simple but effective method to confirm compliance and prevent these issues before they impact production or performance.

How Radius Gauges Work

Using a radius gauge is straightforward. The inspector selects a blade corresponding to the specified radius and places it against the feature being checked.

• For external radii, the gauge is matched against the outside curve.


• For internal radii, the blade is inserted into the concave feature.

If the gauge fits perfectly without gaps or rocking, the radius matches the intended specification. If light is visible between the gauge and the surface, or if the blade does not sit flush, the radius is incorrect.

This method provides immediate feedback, making it especially useful in workshop and production environments where quick decisions are required.

Practical Applications in Industry

Radius gauges are widely used across engineering, manufacturing, and maintenance environments. Their simplicity and reliability make them essential in both production and inspection workflows.

Tool and Die Inspection

Toolmakers use radius gauges to verify the profiles of punches, dies, and forming tools. Ensuring correct radii helps maintain consistent part quality and prolongs tool life.

Machined Component Verification

Machinists rely on radius gauges to confirm that fillets and edges meet drawing specifications, particularly in CNC machining operations where accuracy is critical.

Maintenance and Repair Work

In repair and refurbishment tasks, radius gauges help identify wear, deformation, or incorrect machining from previous work.

Fabrication and Welding

Fabricators use them to check prepared edges, transitions, and formed components where smooth radii are required for structural integrity.

Quality Control and Inspection

Inspection teams use radius gauges as part of routine quality checks to ensure consistency across production batches.

Advantages Over Other Measuring Tools

While calipers, micrometers, and coordinate measuring machines (CMMs) are essential for dimensional inspection, they are not always practical for measuring radii quickly. Radius gauges fill this gap by offering:

• Immediate verification without calculations


• Ease of use for operators at any skill level


• Portability for workshop and on-site inspections


• Cost-effective inspection compared to advanced metrology equipment


• Fast confirmation in high-volume production environments

They are particularly valuable when checking features that are difficult to measure numerically or when quick pass/fail decisions are needed.

Choosing the Right Radius Gauge Set

Selecting the appropriate radius gauge depends on the application and measurement requirements. Consider the following factors:

Metric vs Imperial

Choose a set that aligns with your design drawings and measurement standards.

Range of Sizes

Ensure the set covers the radii commonly used in your machining or fabrication processes.

Blade Material

High-quality stainless steel blades provide durability, corrosion resistance, and consistent accuracy.

Blade Markings

Clearly etched size markings improve usability and reduce inspection errors.

Application Environment

For heavy workshop use, robust and easy-to-handle sets are preferable.

Investing in a quality radius gauge set improves inspection reliability and reduces the risk of measurement errors.

Best Practices for Using Radius Gauges

To achieve accurate and repeatable results, follow these simple practices:

• Clean both the gauge and component surface before inspection


• Ensure good lighting when checking fit and alignment


• Use multiple blades to confirm borderline sizes


• Store gauges properly to prevent damage or deformation


• Periodically inspect gauges for wear or bending

These steps help maintain accuracy and extend the lifespan of the tool.

The Role of Radius Gauges in Modern Manufacturing

Despite advances in digital metrology and automated inspection systems, radius gauges remain a staple in workshops worldwide. Their practicality, speed, and reliability make them indispensable for day-to-day machining and inspection tasks.

They serve as a first-line inspection tool — ideal for quick checks before moving parts to more detailed measurement processes if required. In lean manufacturing environments, where efficiency and quality must coexist, radius gauges provide a perfect balance of simplicity and precision.

Radius gauges play a crucial role in ensuring that fillets and radii meet design specifications, contributing to component strength, durability, and functional performance. By allowing fast and reliable verification of internal and external radii, they help prevent stress concentrations, assembly issues, and premature failure.

Whether used in toolrooms, machining centres, fabrication workshops, or quality inspection departments, radius gauges provide a practical solution for features that are difficult to measure with traditional tools. Their simplicity, portability, and effectiveness make them an essential part of any engineering or manufacturing toolkit.

In environments where precision matters and efficiency is critical, radius gauges deliver confidence — ensuring that every curve, fillet, and radius performs exactly as intended.
