In modern machining, achieving precision while maintaining efficiency is essential. Slot drills and corner radius cutters are two highly versatile tools that play a critical role in milling operations, especially when working with confined spaces, intricate geometries, and demanding materials. Whether used in general machining, mold and die production, or high-precision engineering, these cutters provide the flexibility needed to produce accurate and high-quality components.

Understanding how slot drills and corner radius cutters function—and when to use each—can significantly improve machining outcomes. From better surface finishes to longer tool life, selecting the right cutter ensures both productivity and consistency across operations.

What Are Slot Drills?

Slot drills are a type of end mill specifically designed for plunging and slotting operations. Unlike standard end mills, slot drills typically feature two cutting edges (flutes) and are center-cutting, meaning they can plunge directly into the material without requiring a pre-drilled hole.

This capability makes slot drills particularly valuable in applications where precise slots, grooves, or pockets are required. Their geometry allows for efficient chip evacuation and reduced cutting resistance, especially in softer materials.

Key Features of Slot Drills

• Two-Flute Design: Most slot drills have two flutes, allowing for larger chip clearance and improved cutting performance in slotting operations

• Center-Cutting Capability: Enables vertical plunging into material, making them ideal for pockets and blind features

• Efficient Chip Removal: Wide flute spacing reduces clogging, especially when machining aluminium or plastics

• Versatility: Suitable for both roughing and finishing, depending on tool geometry and coating

Slot drills are commonly used in CNC machining as well as manual milling setups, offering flexibility across a wide range of operations.

Applications of Slot Drills

Slot drills are widely used in various machining tasks, including:

• Slotting: Creating straight or curved slots with precision

• Pocket Milling: Producing cavities or recesses in a workpiece

• Plunge Cutting: Entering the material vertically without pre-drilling

• Keyway Cutting: Forming keyways in shafts and mechanical components

• General Profiling: Machining contours and edges

They are suitable for materials such as aluminium, mild steel, plastics, and even some composites. Their ability to plunge makes them indispensable for operations requiring internal features.

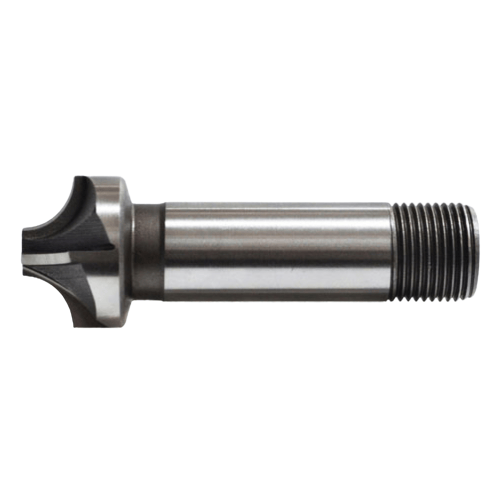

What Are Corner Radius Cutters?

Corner radius cutters, also known as bull nose end mills, are designed with rounded corners instead of sharp edges. This radius at the cutting edge provides a significant advantage in reducing stress concentration during machining.

Sharp corners in cutting tools are prone to chipping and premature wear, especially under high loads or when machining hard materials. By introducing a radius, these cutters distribute cutting forces more evenly, resulting in improved durability and performance.

Key Features of Corner Radius Cutters

• Radiused Cutting Edges: Reduces stress on tool corners and minimizes chipping

• Enhanced Strength: Stronger cutting edge compared to sharp-corner tools

• Improved Surface Finish: Produces smoother transitions and rounded internal corners

• Extended Tool Life: Less prone to wear and breakage in demanding applications

Corner radius cutters are available in various radii sizes, allowing machinists to select the appropriate tool based on the desired corner profile.

Applications of Corner Radius Cutters

These cutters are widely used in precision machining and are particularly valuable in applications where durability and finish are critical:

• Fillet Creation: Producing rounded internal corners in parts

• Mould and Die Work: Essential for creating smooth, stress-free geometries

• High-Speed Machining: Handles higher loads and speeds without chipping

• Finishing Operations: Achieves superior surface finishes on complex parts

• Aerospace and Automotive Components: Ensures structural integrity and fatigue resistance

By reducing sharp transitions, corner radius cutters also help improve the strength and longevity of machined components.

Slot Drills vs Corner Radius Cutters

While both tools are used in milling, they serve different purposes and excel in different scenarios:

Slot Drills:

• Best for plunging, slotting, and pocketing

• Ideal for creating internal features

• Typically have sharp corners for precise edges

• Excellent chip evacuation for softer materials

Corner Radius Cutters:

• Designed for strength and durability

• Ideal for finishing and high-load applications

• Produce rounded internal corners

• Reduce tool wear and improve part strength

In many machining processes, both tools are used together—slot drills for roughing and initial shaping, followed by corner radius cutters for finishing and enhancing durability.

Benefits of Using the Right Cutter

Selecting the appropriate cutter for your application offers several key advantages:

• Reduced Tool Wear: Proper tool selection minimizes stress and prolongs tool life

• Improved Surface Finish: Achieves smoother and more consistent results

• Higher Productivity: Efficient cutting reduces machining time

• Better Dimensional Accuracy: Maintains tight tolerances across components

• Enhanced Part Strength: Rounded corners reduce stress concentrations in finished parts

Using the wrong cutter can lead to premature tool failure, poor surface finish, and increased production costs.

Tips for Choosing the Right Tool

To maximize performance and efficiency, consider the following when selecting slot drills or corner radius cutters:

• Material Type: Softer materials benefit from slot drills with fewer flutes, while harder materials may require coated corner radius cutters

• Cutting Conditions: High-speed machining favors stronger tools like corner radius cutters

• Geometry Requirements: Choose slot drills for sharp internal corners and corner radius cutters for fillets

• Tool Coatings: Use coatings such as TiAlN or DLC to improve wear resistance and heat management

• Machine Capability: Ensure your machine can handle the speeds, feeds, and rigidity required for the chosen tool

Careful consideration of these factors ensures optimal machining performance and cost efficiency.

Common Mistakes to Avoid

Even experienced machinists can encounter issues when using these tools. Avoid the following common mistakes:

• Using slot drills for heavy finishing: This can lead to rapid wear and poor surface quality

• Ignoring tool radius requirements: Incorrect radius selection can affect part functionality

• Improper speeds and feeds: Can cause tool breakage or excessive heat buildup

• Poor chip evacuation: Leads to tool clogging and reduced cutting efficiency

• Inadequate tool holding: Causes vibration and reduces accuracy

Proper setup and tool selection are essential for achieving consistent results.

Slot drills and corner radius cutters are indispensable tools in milling operations, each offering unique advantages for specific applications. Slot drills provide the ability to plunge, slot, and create internal features with precision, making them ideal for roughing and general machining tasks. On the other hand, corner radius cutters deliver enhanced strength, improved surface finishes, and extended tool life, especially in high-performance and finishing operations.

By understanding the strengths of each tool and applying them appropriately, machinists can achieve better results, reduce tooling costs, and improve overall efficiency. Whether working on simple components or complex geometries, the right combination of slot drills and corner radius cutters ensures precision, durability, and high-quality outcomes in every milling operation.
